SE17 solar tracker motor
- Torque 10 KW
- Weight 105kg
- 102: 1 ratio
- Engine 24v
- Feedback - two hall sensors
- Angle of rotation - 360 degrees
- recommended management
- Size: 631mm x 740mm x 111mm
| Count | Price | |||
|---|---|---|---|---|
| From | 1 | шт | 55370 | грн |
| From | 2 | шт | 54263 | грн |
Переглянути відгуки (1)

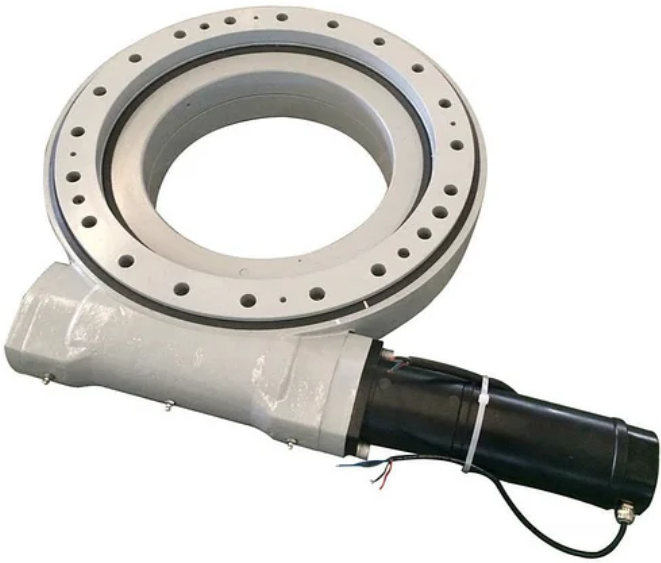

We are glad to present you SE-17 solar tracker geared motor
SE-21 works on the principle of a worm gear. Slewing drive function with standard worm technology, in which a worm on the horizontal shaft acts as a driver for the gear.
Rotating a horizontal screw rotates the gear around an axis perpendicular to the screw axis. This combination reduces the speed of the controlled element and also increases its torque; Increasing it proportionally as the speed decreases. The speed ratio of the shafts depends on the ratio of the number of threads from the worm to the number of teeth in the worm wheel or gear.
The torque of the geared motor is 10kN, the weight of the product is 109 kg, the motor power is 24 volts. SE-17 solar tracker geared motor has 360 degree rotation angle. On board the SE-17, the solar tracker's geared motor has two hall sensors for feedback.
Characteristics:- Torque 10KN
- Weight 105kg
- Gear ratio 102: 1
- 24v motor
- Feedback - two hall sensors
- Rotation angle - 360 degrees
- recommended control
