Manufacturer: Hobbywing
• Maximum thrust: 19200 g
• Material: Polymer
• Size: 3011 "
• Diameter: 30 "
• Pitch: 11 "
• Propeller mount: T-Style; Hub

• Size: 360mm x 110mm x 15mm

Technical characteristics:

• MCU: STM32F4
• Protocol: DroneCAN
• Heater: resistive
• Air speed sensor: SM5391
• Measuring range: ±6895 Pa
• Range of air speed: 0-106 m/s
• Accuracy: ±1% FS
• Temperature measurement: -20℃~125℃
• Humidity measurement: 0-100%
• Heating element power: 35W
• Compatible controller: ArduPilot/PX4 (CUAV/Pixhawk)
• Operating voltage: 16V
• Operating temperature: -20℃ to 85℃
• Size: 102mm x 29mm x 28mm

Characteristics: DLE170 petrol engine 170CC

• Performance: 17.5 hp/7500 rpm.
• Idling speed: 1100 rpm.
• Static thrust: 35 kg/100 meters of height.
• Static thrust: 31.5 kg/altitude 1800 meters.
• Recommended propeller: 30x12; 32x10;
• Spark plug type: NGK CM6
• Volume: 170cm3
• Diameter × Stroke: 52mm × 40mm
• Compression ratio: 9.5:1
• Lubricant ratio: 30:1
• Main engine weight: 3620 g.
• Exhaust system weight: 470 g.
• Ignition weight: 190g.
• Ignition voltage: 4.8-8.4V
• Size: 212mm x 288mm x 174mm

Specifications:

• Manufacturer: HolyBro
• Number of cycles: 50/100/200
• Field measurement range: -800 to +800 μT
• Gain: 20 / 38 / 75 LSB/μT
• Sensitivity: 50/26/13 nT
• Noise: 30/20/15 nT
• Maximum sampling rate on one axis (divide by 3 to get maximum sampling rate on 3 axes): 1600/850/440 Hz
• Output connector: 4-pin JST-GH1.25
• Operating temperature: -40 to +85 °C

  Package:

  • HolyBro RM3100 electric compass - 1 pc.
  • Size: 34mm x 36mm x 13mm

Specifications:

• Main controller: STM32H743
• Accelerometer/Gyroscope: ICM-20649
• Accelerometer/Gyroscope: ADIS16470
• Accelerometer/Gyroscope: BMI088
• Compass: RM3100
• Barometer: MS5611*2
• Receiver interfaces: S.BUS / PPM / DSM;
• Peripheral interfaces: PWM x14 (12 with DShot support)
• RSSI input: Analog / PWM
• UART ports for GPS: 2 (GPS and UART4)
• I2C buses: 4 (2 dedicated ports)
• CAN buses: 2
• ADC: 2
• USB port: Type-C
• Power lines: 2 (Power A is combined with the consumption sensor interface, Power C - with the CAN bus)
• Power: Power A / C - 4.3-5.4 V, USB: 4.75-5.25 V
• Voltage on the servo line: 0-36 V
• Dimensions: 77x45.5x39 mm (19.5 mm - expansion board only)
• Weight: 101 g
• Size: 77mm x 45mm x 39mm

• Brand: dsservo
• Model: DS3225 25kg
• Torque at supply voltage (5 V): 21 kg / cm
• Torque at supply voltage (6.8 V): 24.5 kg / cm
• Speed: 0.15 sec / 60 ° (V 5 V) / 0.13 sec / 60 ° (6.8 V)
• Operating voltage: 4.8 ~ 6.8 V DC
• Motor type: DC motor
• Gear type: copper and aluminum
• Operating frequency: 50-333 Hz

• Size: 40mm x 20mm x 41mm

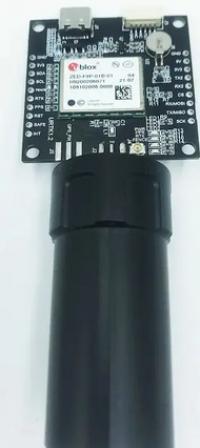

Technical characteristics

• Package: SMD
• Customizable: Yes
• Model Number: ZED-F9P-01B
• Operating temperature: 85
• Condition: New
• Type: Module
• Origin: Mainland China.
• Size: 52mm x 43mm x 3mm

Features: IPOWER 24 - 220 V 600 wt

• Input voltage: 20-30 V DC
• Output voltage: 210 V-240 V AC
• Continuous output power up: 600 W
• The maximum output power (peak): 1200 W
• Output waveform: pure sine wave
• Frequency: 50 Hz ± 2 Hz
• Operating temperature range: -40... + 40 ° C
• The conversion efficiency of not less than 85%
• Switch the fan control
• Overload
• Reverse polarity protection
• Protection from low input voltage
• Protection against high output voltage

• Size: 185mm x 95mm x 55mm

Parameters: LTC3780 DC-DC 5-32V to 1V-30V 10A buck-boost converter
• Model: LTC3780
• Input voltage: 5-32V
• Output current: 10A (max.), 8A long time
• Output voltage: 1-30V adjustable
• Output ripple: 50 mV
• Output power: 80 W, peak 130 W
• Short circuit protection: Yes
• Reverse polarity protection: no
• Operating temperature range: -45 ~ + 85

• Size: 75mm x 45mm x 10mm

• Output Power: 560 Watts
• Type: DC / DC Converters
• Input Voltage: 12V
• Output Current: 20 A
• Output voltage: 28V
• Input voltage range: 10-18 V dc
• efektivnosti: up to 93%
• Rezhym temperature: -30 ° C to + 80 ° C

• Size: 100mm x 80mm x 39mm

Specifications

• Manufacturer: DLE
• Model: 60
• Part number: DLE 60
• Power: 7 hp/8500 rpm
• Idle speed: 1400 rpm/min
• Static drag: 5.2 kg/100 meters height
• Recommended propeller: 22x10; 23x8;
• Spark plug type: NGKKM6
• Bore × Stroke: 36mm×30mm
• Compression ratio: 7.6:1
• Ignition voltage: 4.8 V-8.4 V
• Size: 175mm x 276mm x 132mm

• Output power: up to 840 W
• Type: DC/DC Converters
• Input voltage: 12V
• Output current: 30A
• Output voltage: 28V
• Input voltage range: 8-28 V dc
• Efficiency: up to 93%
• Temperature mode: -30°C to +80°C

• Size: 140mm x 110mm x 70mm

• SPECIFICATIONS:
• Brand: DSSERVO
• Model: DS51150-12V
• Torque: 150 kg. cm at 10 V; 165 kg. cm at 12 V and 173 kg. cm at 12.6 V
• Speed: 0.24 C/60° at 10 V; 0.21 C/60° at 12 V and 0.19 C/60° at 12.6 V
• Operating voltage: 9 ~ 12,6 v
• Insensitivity zone: 3 μs
• Gearbox type: Stainless steel
• Working stroke: 180° (see next important note!)
• Number of teeth: 18T
• Wire length: 320 mm
• Size: 65mm x 30mm x 48mm

Main characteristics CUAV SKYE AIRSPEED SENSOR

• Product Origin: Guangdong, China
• Name: CUAV
• Models: CUAV-SKYE
• Personal template: No
• Processor: STM32F4
• Protocol: Dronekan
• Airspeed sensor: MS5525
• DC in: Default 12-36V
• Operating temperature: -20℃ 75℃
• Protection level: IP44 (installed on request)
• Size: 82mm x 30mm x 28mm

• Manufacturer: Dsservo
• Servo model: DS5160
• Wire length: 320 mm
• Speed: 0.17 seconds / 60 degrees at (6 V) 0.15 seconds / 60 degrees at 7.4 V 0.13 seconds / 60 degrees at 8.4 V
• Torque: (58 kg when powered 6 V), (65kg when powered 7.4 V), (70kg when powered 8.4 V)
• Voltage: 6 - 8.4 V

• Size: 65mm x 30mm x 48mm

CubePilot HEX Here 4 Specifications:

Technical Specifications

• Working Voltage 8.4-16.8VDC
• Standby Current ≤200mA
• Locked Rotor Torque ≥90KG.CM@8.4V ≥130KG.CM@12.0V ≥150KG.CM@16.8V
• No-Load Speed ​​≤0.19sec/60°@8.4V ≤0.16sec/60°@12.0V ≤0.13sec/60°@16.8V
• Rotation Direction CCW (Counter-Clockwise), CW (Adjustable)
• Pulse Width Range 500-2500 μs
• Neutral position 1500 μs
• Tilt angle 180° ± 10°
• Maximum working angle 358° ± 10°
• Mechanical limit angle 360°
• Dead zone width ≤3 μs
• Operating temperature -20°C to 60°C
• Storage temperature -20°C to 60°C
• Weight 365 ± 0.5 g
• CNC housing material AL6061
• Gear material All-metal
• Reduction ratio 1: 257
• Motor type Brushless motor
• Size: 88mm x 33mm x 84mm

Specifications:

• DC Input Voltage: 12V
• DC Input Voltage Range: 8~18V
• DC Output Voltage: 28V
• Output Current: 40A
• Max Output Power (W): 1120W
• Efficiency Improvement: >97%
• Ripple and Noise Type (mVp-p): 260
• Working Temperature: 0°C ~ 80 °C
• Working Humidity: 10%~90%RH
• Storage Temperature: -20°C ~ 85 °C
• Size: 250mm x 127mm x 63mm

Propeller bore bases: 10mm, 12mm, 34mm.
• Maximum thrust: 3.25kg:
• 8mm Shaft diameter: 4mm
• Battery type: 6S Li-Po
• Complete set: Motor Tarot 4008 Martin
• 1 Metal base of folding propeller holder (44*10*2.5MM): 2.0g
• 1 Holder Carbon Base 15 X2.0MM): 0.85g
• 1 Button head screws: M3x4mm 0.4g*2
• Partially threaded cap screws for blades: M3x11.3mm 0.6g*2
• Pan head screws: M3x8mm 0.4g*3
• Cylinder head screws: M3x5mm 0.4g*4
• Teflon washer 8x3x0
• Attention! do not use the mounting bolts, they can damage the motor winding, which will disable it.

• Size: 44mm x 19mm x 19mm

Characteristics:

• Model - C2D-32X12-WTL
• Material - Carbon
• Size - 3212 "
• Diameter - 32 "
• Pitch - 12 "
• Number of blades - 2
• Folding blades - No
• Rotation direction - CW
• Purpose - For slow flights; For multicopters; For electric motors

• Size: 812mm x 90mm x 45mm

• Brand: Dsservo
• Model: DS3115
• Maximum force: 15 kg
• Operating voltage: 4.8 ~ 6.8 V (DC)
• Motor type: DC motor
• Gear type: copper and aluminum
• Operating frequency: 50-333 Hz
• Angle 180 ° (PWM 500-2500 µs)

• Size: 40mm x 20mm x 41mm

Complete set:

Specifications:

• DC Input Voltage: 12V
• DC Input Voltage Range: 8~18V
• DC Output Voltage: 28V
• Output Current: 30A
• Max Output Power (W): 1120W
• Efficiency Improvement: >97%
• Ripple and Noise Type (mVp-p): 260
• Working Temperature: 0°C ~ 80 °C
• Working Humidity: 10%~90%RH
• Storage Temperature: -20°C ~ 85 °C
• Size: 177mm x 127mm x 63mm

Features: 8-60 V down converter
• Input voltage: 8-60V
• Rated output current up to: 10A
• Maximum output current up to: 15A (blowback required)
• Output voltage: 1-36V (smoothly adjustable by a back-up resistor)
• Output power 200 W
• Conversion efficiency: up to 96%
• Operating temperature: -20 to +75 degrees
• Operating frequency: 180 kHz

• Size: 70mm x 38mm x 31mm

• Specification:
• Package size: 300mm x 200mm x 60mm
• 5.8G Sensitivity: -93 dB
• Suitable antenna: SMA interface

• Size: 300mm x 200mm x 60mm

Technical specifications:

• Wide input voltage from 40 V 90
• Stable output voltage-12 V
• Output current 10A maximum
• 120W maximum output power
• IP68 Waterproof Sealed Corus
• Cooling by free air convection
• Surface Mount
• Overcurrent and overvoltage protection
• Protection against overheating, tripping, short circuit, reverse polarity

• Size: 76mm x 74mm x 31mm

Features:

• Voltage: 12-24 V (recommended battery capacity, can be adjusted if high voltage is required)
• Speed (no load): 24 V, about 0.46 s/60°.
• Maximum torque: 200 kg.cm.
• Nominal torque: 70 kg.cm
• Idle current: <0.15 A
• Flash current: 24 V: <11 A
• Input signal: PWM: 800–2200 µs, 50–400 Hz.
• Range of working angles: adjustable: minimum ± about 60 °, approximately up to ± 300 °.
• Application: industrial robot manipulator.
• Size: 132mm x 116mm x 55mm

• EMAX ES3054 digital servo
• Trademark EMAKS
• Product name ES3054
• Operating voltage 4.8V-6.0V
• STD Direction counterclockwise/pulse travel 1500 to 1900 µs
• Torque 4.8V 3kg. see Max.
• 4.8V operating speed 0.15 sec/60° no load
• Stopping torque 6.0V 3.5kgcm Max.
• Operating speed 6.0V 0.13s/60° no load
• Fork available by FUT; JR
• Flower head 23T
• Maximum travel 145°±10° (700-2300 µs)
• Other bearing; Metal; Digital

• Size: 28mm x 13mm x 31mm

• Supply voltage 4...9 V
• Current consumption 13 mA
• UART interface
• Interface for compass QMC5883L I2C (DA,CL)
• Operating temperature range -20...+80 °C
• Dimensions 20x20x12.4 mm
• Weight 8g

• Size: 20mm x 20mm x 12mm

Product details: DLE 220CC DLE222 4-cylinder petrol engine

• Perfomance: 21.5hp/7500rpm
• Idling speed: 1000rpm/min
• Propeller: 32*10 /32*12 /34*10
• Sparking Plug: NGK CM6
• Exhaust gas quantity: 222.5 cm3
• Diameter X Stroke: 45mm x 35mm
• Compression ratio: 7.6X1
• Lubricant ratio: 30x1
• Net weight: 4950g
• Gross weight; 5610G
• Size: 286mm x 257mm x 176mm

Features: MT7 rotary solar tracker

• The rated operating voltage is 24V.
• The final point: 8KN.m
• Tightening torque of the motor: 33.9KN.m
• Static axis Rating: 338KN
• Static radial rating: 135KN
• Dynamic axis Rating: 81KN
• Dynamic Radial Rating: 71KN
• Transfer rate: 71: 1
• Material: 50Mn.42CrMo
• Holding time: 33.9KN.m
• Feedback - two hall sensors
• Angle of rotation - 360 degrees
• recommended management
• Instruction for the rotary drive of the solar tracker

• Size: 472mm x 316mm x 81mm

• Input voltage: DC 24 V
• Output voltage: DC 12 V
• Output current: 20 A
• Output Power: 240 W
• The conversion efficiency: up to 93%
• Voltage Regulation: 1%
• Load Regulation: 2%
• Operating temperature: -30 ~ + 80 ° C
• Wires:
  • Input: Red +; the black -
  • output: Yellow +; the black -

• Size: 72mm x 72mm x 32mm

Characteristics for FPV goggles Skyzone SKY040 Pro 5.8GHz 48CH L,X Band Black

DISPLAY
• Display features: Two 3.4" diagonal displays
• Update frequency: 90 Hz
• Field of vision: Maximum 110 degrees INSHE
• Color: Black
• Vyrobnik: Skyzone
• Type: FPV Videosholom INTERFACE
• USB 3.0: 1
• DisplayPort v1.2: 1 FUNCTIONS
• Sensors: Gyroscope, Accelerometer, IPD sensor for adjusting the inter-institutional area
• Data entry: Microphone input, Button on the headphone
• Size: 185mm x 75mm x 68mm

• Interchange protocol: I2C
• Sensor: MS4525D
• Voltage voltage: 2.7-5.5V
• Security stream: 12 mA
• Speed sensor development: 14 bits.
• Temperature compensation:
• Packaging
• Sensor - 1 pc.
• Pito tube (plastic sleeve) - 1 pc.
• Return hose - 1 pc.
• 4x life I2C bus cable

• Size: 20mm x 20mm x 4mm

Holybro M10 GPS

• Power supply 220 V AC / 110 V; 50-60 Hz
• Rated Power 800W
• Soldering cycle time from 1 to 8 minutes
• Temperature range 0-280 ° C
• Working area size 180x235 mm
• Overall dimensions 375x240x375 mm
• Gross weight 7 kg

• Size: 375mm x 375mm x 240mm

• Output Power: 480 Watts
• Type: DC / DC Converters
• Input Voltage: 12V
• Output Current: 20 A
• Output voltage: 24V
• Input voltage range: 10-18 V dc
• efektivnosti: up to 93%
• Rezhym temperature: -30 ° C to + 80 ° C

• Size: 100mm x 80mm x 39mm

• Material: CNC machined aluminum
• Overall length: 35 mm
• The package includes:
• 25T steering system*1
• Screws*2

• Size: 35mm x 15mm x 6mm

Technical parameters:

• Rated voltage: DC 24V (can work 12-24V, 12V torque and speed is halved)
• No-load current: <500mA (load current 5-10A, it is recommended to use 10A switching power supply or battery or more than 10A, the larger the output power of the power supply, the better. Battery is not included)
• Limit angle: 1200US-1700US: about 90 degrees. 500US-2500US: about 288 degrees (pulse width determines the angle, if you need other angles, increase or decrease the pulse width by yourself, maximum about 288 degrees)
• Control method: PWM pulse width modulation signal, frequency 50 Hz, period 20 ms. Signal voltage: 3.3V-5V. (Pulse frequency: 50-333Hz)
• Material: Gear and shaft: alloy steel, hardened steel, aluminum alloy; body: aluminum alloy
• Speed: 0.5 s/60° (equivalent to 20 rpm)
• Mechanical life:>300,000 times (370 hours)/(30kg/cm)
• Limiting torque: 400 kg/cm (tooth chipping load, it is not recommended to work at this torque)
• Starting torque: 380 kg/cm (short-term operation)
• Normal torque: 140kg/cm (can work for a long time)
• Size: 132mm x 124mm x 55mm

• Specifications:
• Type: Flight controller with stabilization system
• Application: Car models; Helicopters; Multicopters; Airplanes
• The main microcontroller: STM32H753
• Sensors:
• Accelerometers and gyroscopes: ISM20649 (6DOF 32KHz); ISM20602 (6DOF 32KHz); ISM20948 (6DOF 32KHz)
• Compass: External
• Barometer: MS5611
• Number of PWM outputs: 14
• Peripheral interfaces: ADC; CAN; DigitalLED; I2C; S.BUS; SPI; SWD; SmartAudio; UART
• Receiver interfaces: DSM; PPM; S.BUS
• Supported protocols: DShot1200; Dshot150; Dshot300; Dshot600; Multishot; OneShot125; Oneshot42; PWM; PWM (collector. Motors); Proshot1000
• Interface ports:
• UART: 6
• I2C: 2
• SPI: 2
• CAN: 2
• OSD: External
• USB port: Є
• Debugging interface: SWD; USB
• Input voltage: 4 to 5.7 B
• External data storage: MicroSD memory card
• Flight functions: Return to home, Flight by points, POI mode, Hold at a point, Hold altitude
• Compass flight: Yes
• Dimensions: 94.5x44.3x17.3 mm (interface board)
• Dimensions: 38.4x38.4x22 mm (CUBE PC)
• Size: 80mm x 35mm x 10mm

SPECIFICATIONS

• Voltage: 5-27V
• Video interface: BNC or pin (1.25, 2.54 optional or customized according to requirements)
• Video input/output impedance: 75Ω
• Video bandwidth: 8MHz
• Video format compatibility: PAL, NTSC, SECAM
• Video voltage: 1V P-P
• Video signal to noise ratio: ≥70dB
• Applicable cameras: analog cameras and CVBS cameras
• Baud rate: 115.2Kbps (baud rate can be customized upon request)
• Fiber optic interface: FC/UPC
• Optical fiber wavelength: 1310nm/1550nm
• Transmission distance: 0-20km

• Size: 40mm x 45mm x 5mm

Features The tracking system of the sun ST1500

• Manufacturer: GreenChip (Ukraine)
• Designed for solar panels up to 1800 watts
• 180 degree rotation angle.
• Rotational planes - 2 (two-axis tracker (Parabola motion))
• Count of engines -1 (Parabola motion)
• Provides 40% increase in power generation
• How it works - Calculation of sun position according to GPS
• Operating voltage: 12V / 24V / 36V / 48V
• Operating temperature: -40 to + 60 ℃
• Power consumption is negligible.
• Adjustable direction angles
• The size of the turntable: 3000x1580x40mm Perhaps Komplektatsii the wind sensor
• documentation ST1500 Sun Tracking System

• Size: 3000mm x 100mm x 1600mm

Technical characteristics:

• Adjustable synchronous module in aluminum housing.
• Input voltage: 10-90 V.
• Output voltage: 1.5 - 60V (constantly adjustable).
• Output current: 6A
• Rated power: 100 W.
• Protection against incorrect connection polarity.
• Operating temperature: from -10 to + 85 degrees.
• Operating frequency: 180 kHz.
• Conversion efficiency: up to 94%.
• Size: 71mm x 39mm x 31mm

Technical characteristics

• Model Number: OCS-D1102
• Radio Control Parts and Accessories: Servos
• Material: Metal
• Trade name: OCSERVO
• Origin: Mainland China.
• Usage: Remote control vehicles and toys
• Size: 45mm x 40mm x 10mm

Features:

• Rated operating voltage - 24/36V.
• To work needed positioner, which performs the functions of the device power and control.
• Swing speed: 3 mm / sec.
• Have a reed position sensor, corrosion-resistant coating and are characterized by a low level of noise.
• Stem extension length is 36 inches (90cm)
• Size: 1200mm x 200mm x 140mm

Specifications

Characteristics

• Manufacturer: Hobbywing
• Material: Polymer + Carbon
• Size: 4314 "
• Diameter: 43 "
• Pitch: 14 "
• Propeller mount: T-Style | Hub
• Number of blades: 2
• Folding blades: Yes
• Direction of rotation: CW and CCW
• Purpose: For multicopters | For electric motors | Folding blades
• Weight: 404 g
• Package: Propeller assembly with hub - 2 pcs (CW and CCW)

• Size: 500mm x 70mm x 15mm

• Model RC482410
• Rated voltage 48 V DC
• Input voltage range 35-60 V DC
• The efficiency of 95% (half load) 94% (at full load)
• Output voltage 24 V DC
• The output current is 10A
• The nominal output power of 240 W
• Output Peak Power 300W
• Operating temperature -30 ° c ~ + 80 ° c
• Waterproof IP68
• Surge Protection Yes
• Protection against over-current protection Yes
• Protection against overheating Yes
• Short-circuit protection Yes

• Size: 85mm x 82mm x 40mm

• Type: DC DC DC Voltage Convertor, 24 VDC to 12 V 40 AMP
• Output Type: One
• Individual manufacturing: Yes
• Output current: 40A
• Output Capacity: 480 Watts
• Changing: 24 V vehicles
• Line Adjustment: ± 0.2%
• Load adjustment: ± 0.2%
• Temperature coefficient: ± 0.03% / ° C
• Cooling: Free convection of air
• Enclosures: IP68
• Safety Certificates: ISO 7637-2: 2004 CE RoHS
• Idle current: <0.01A

• Size: 100mm x 80mm x 39mm

Features:

• Input voltage: 10-15 V DC
• Output voltage: 210 V-240 V AC
• Continuous output power: 1500 W
• The maximum output power (peak): 3000 W
• Output waveform: pure sine wave
• Frequency: 50 Hz ± 2 Hz
• Operating temperature range: -40... + 40 ° C
• Conversion Efficiency: at least 90%
• Switch the fan control
• Overload
• Reverse polarity protection

• Size: 320mm x 150mm x 70mm

• Brand: Dsservo
• Model: DS3218
• Maximum force: 20 kg
• Operating voltage: 4.8 ~ 6.8 V (DC)
• Motor type: DC motor
• Gear type: copper and aluminum
• Operating frequency: 50-333 Hz
• Angle 180 ° (PWM 500-2500 µs)

• Size: 40mm x 20mm x 41mm

Technical specifications of the servo extension cable

• Cable length: 20 cm
• Pitch: 2.54 mm
• Number of handles: 3
• Cable type: for servo
• Socket - Plug
• Size: 20mm x 2mm x 2mm

Specifications:

Servo Drive

Technical specifications:

DLE170G28

Electronic ignition for DLE170G28 engines

Specifications

• Voltage: 24 V (recommended battery power, can be adjusted if higher voltage is required)
• Speed ​​(no load): 24 V approx. 0.75 sec/60°
• Maximum torque: 400 kg.cm
• Rated torque: 140 kg.cm
• No-load current: <0.15 A
• Stall current: 24 V: <14 A
• Input signal: PWM: 800–2200 μs, 50–400 Hz
• Operating angle range: adjustable: minimum ±30°, maximum ±150°
• Weight: 765 g
• Application: Industrial robot manipulator.
• Dimensions: 132 x 55 x 116 mm
• Size: 132mm x 116mm x 55mm

Features: MT9 rotary solar tracker

• The rated operating voltage is 24V.
• The final point: 8KN.m
• Tightening torque of the motor: 33.9KN.m
• Static axis Rating: 338KN
• Static radial rating: 135KN
• Dynamic axis Rating: 81KN
• Dynamic Radial Rating: 71KN
• Transfer rate: 61: 1
• Material: 50Mn.42CrMo
• Holding time: 33.9KN.m
• Feedback - two hall sensors
• Angle of rotation - 360 degrees
• recommended management
• Instruction for the rotary drive of the solar tracker

• Size: 589mm x 468mm x 105mm

Technical characteristics

• KV: 690KV
• Base plating: Al 7075
• Stator: 0.2mm silicon steel Kawasaki
• Configuration: 12N14P
• Different shaft of support support adapter: M5
• Shaft: Titanium alloy hollow shaft
• Cell Number (Lipo): 8S-12S
• Bolt type: M3 (19X19 mm)
• Bearings: NMB 12*6*4 mm
• Rotor: N48SH arc magnets
• Wire AWG: 16# 300mm
• Cap: Al 7075
• Size: 38mm x 38mm x 53mm
