Actuator SuperJack 24

Actuator SuperJack 24 "JAGER (HARL-3624 +)

Features:

  • Rated operating voltage - 24V.
  • The length of the retractable rod is 24 inches (60 cm)
  • To work needed positioner, which performs the functions of the device power and control.
  • Swing speed: 3 mm / sec.
  • Have a reed position sensor, corrosion-resistant coating and are characterized by a low level of noise.
Count Price
From1шт2156грн
From2шт2092грн
Code: 141
шт.
Є в наявності

Переглянути відгуки (4)

24-inch Super Mount JAGER-3624+ Actuator is a device that is mounted on a gimbal with a polar coordinate system to rotate the device to the required position.

SuperPowerJack QARL3624 + is required to turn the satellite dish on command to the required satellite. Installed on a satellite dish suspension. To work, a positioner is required that acts as a control device and stores the positions of the satellites. Currently, actuators are used not only in the field of satellite television, but also in other areas, for example, a drive for turning solar panels, opening swing doors, gates, gates, lifting a motor boat engine, etc.

The SuperPowerJack JAGER-3624+ has a 24-inch stem length with an oversized stem diameter. The length of the Super Mount JAGER-3624 + Actuator can be adjusted with a horse rail. Recommended for use with devices with a diameter of 2 m. The actuator is powered by 36 volts DC, has a four-contact pad - two power contacts and two contacts for the positioner. By changing the polarity of the supply, you can change the direction of movement of the stem. A clamp for fastening is provided.

You can use an actuator:

  • in the satellite dish to turn to the satellite;
  • in a solar power plant - turn the solar panel;
  • to open windows;
  • in the incubator - to move the egg tray.
  • as a drive for opening swing doors

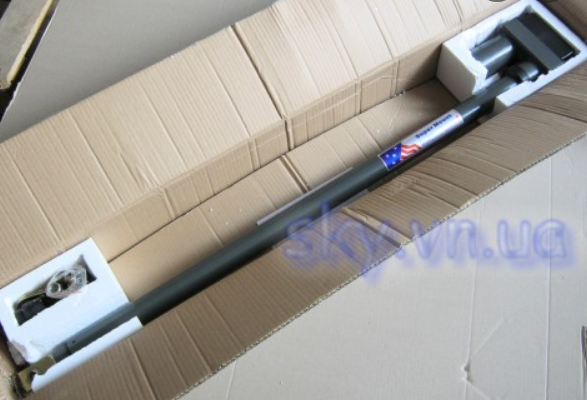

  • as a drive for lifting a motor boat engine View of Super mount 3624+ actuator actuator model actuator super mount 3624+ in original packaging
