Thermal Imaging Camera for FPV Drone

Thermal Imaging Camera for FPV Drone

Main characteristics

  • Basic Industry Specification
  • Headless Mode Function, App Control

    Other characteristics

  • Material Plastic
  • Operator skill level Expert
  • Control type Manual control
  • Image transmission distance 10 km
  • Maximum Flight Time ≤ 10 min
  • Drone type Drones for beginners
  • Product origin Guangdong, China
  • Name Shenzhen Chengen Thermovision Technology Co., Ltd
  • Models MINI cvbs series 256*192 resolution 6.8mm
  • Resolution 256*192
  • Focal length 6.8 mm
  • Name Mini 256 CVBS
  • Netd 40mk
  • Detector Type Uncooled infrared vanadium oxide focal plane sensor
  • Frame rate 25fps
  • Pixel spacing 12 µm
  • Response bracelet 8 ~ 14 microns
  • Fove(H*V) 6.8mm: 26°*20°
  • Pseudo-color White hot
  • Size: 21mm x 21mm x 21mm
  • Count Price
    From1шт16464грн
    From2шт16135грн
    From6шт15806грн
    Code: 1958
    шт.

    Бесплатная доставка по Украине

    Є в наявності

    Переглянути відгуки (0)

    Specification Review

  • Mini 256*192 resolution 6.8mm focal length (CVBS)
  • Resolution 256*192
  • Focal length - 4 mm
  • Detector Type - Vanadium Oxide Uncooled Infrared Focal Plane Detector
  • Frame rate - 25fps
  • Pixel spacing - 12 microns
  • SETD - 40mk
  • Response group - 8 ~ 14 µm

    Optical parameters

  • Lens Specifications - 4.0mm F1.0
  • FOV(H * V) - 6.8 mm: 26 ° * 20 °

    Application functions

  • Visualization/no temperature measurement
  • Visualization

    Other parameters

  • Pseudo color - White hot
  • Suppy voltage - 4.5 V-18V
  • Output type - CVBS
  • Module volume (without lens) - 21*21
  • Weight (without lens) - <8 g
  • Operating temperature - -40℃~+80℃
  • Storage temperature - -45℃~85℃

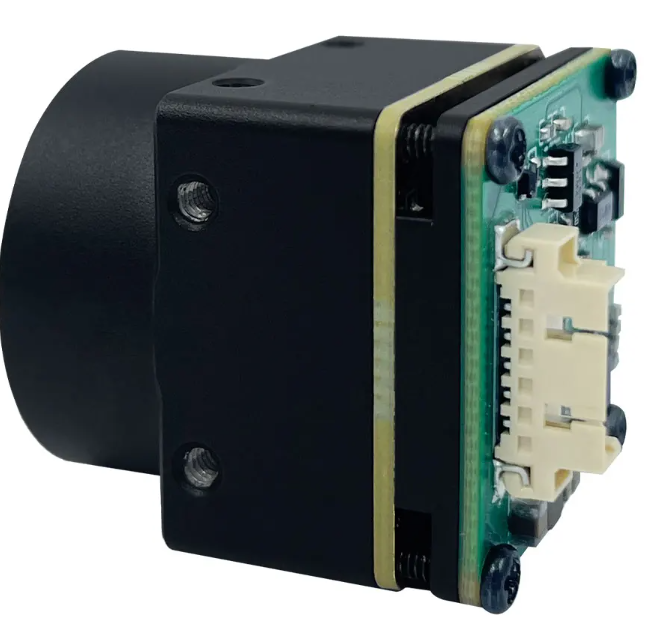

    Тепловизионная камера для FPV дрона1 Тепловизионная камера для FPV дрона12 Тепловизионная камера для FPV дрона13
