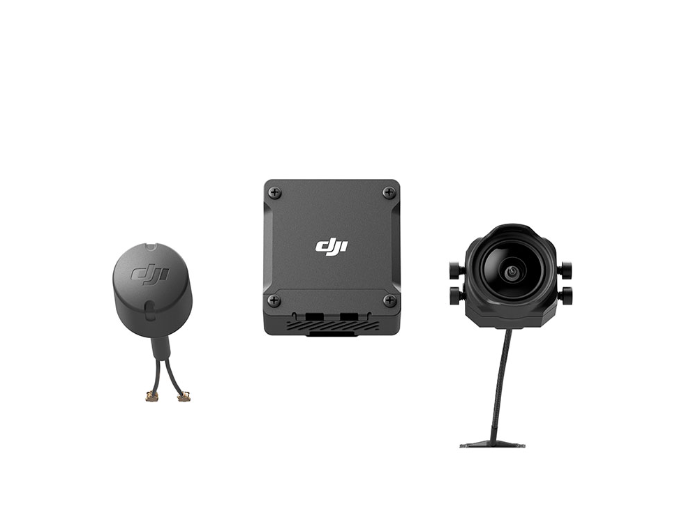

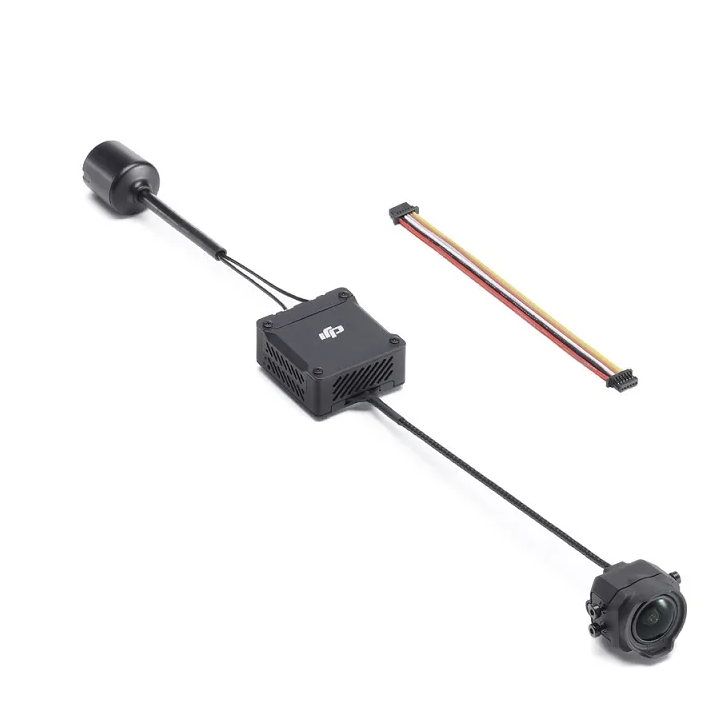

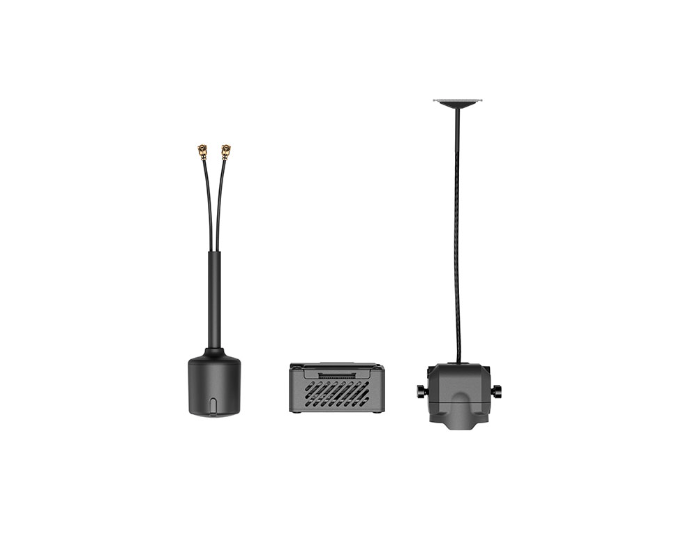

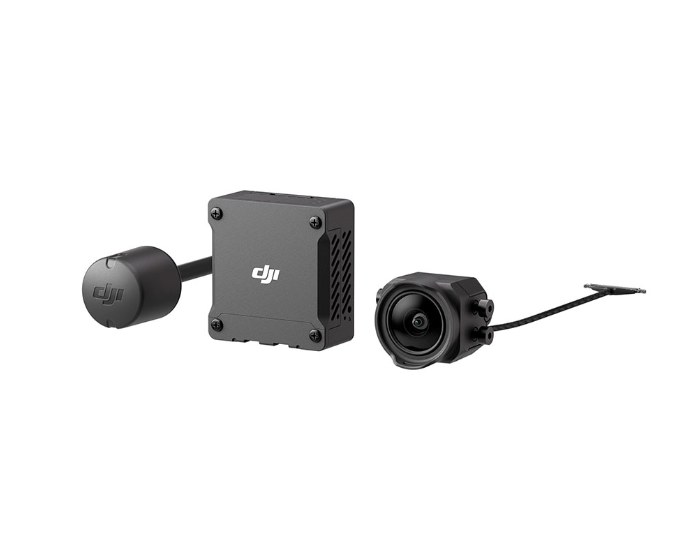

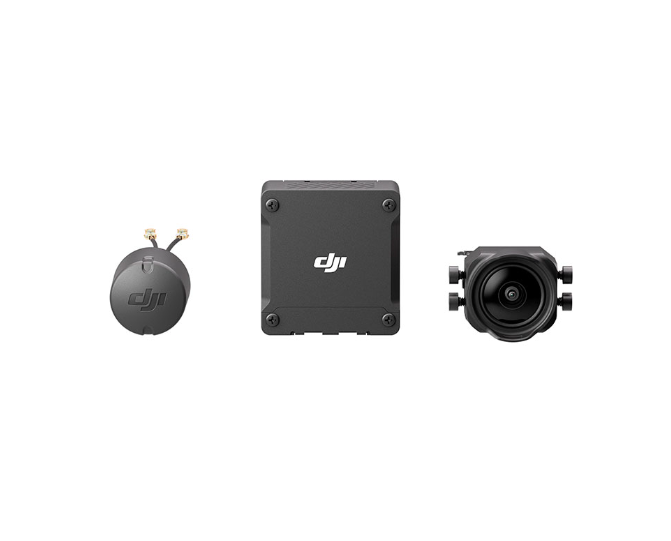

DJI O3 Air Unit video transmission system
System Features:
- Video Transmission Module Weight (with FPV Camera/without FPV Camera): 28g/36.4
- Supports DJI O3+ flagship video transmission technology
- Equipped with built-in 2T2R omnidirectional antennas
- Supports automatic switching between frequency bands depending on their load
- Supports Canvas DJI Goggles 2, DJI Goggles Integra, DJI FPV Goggles V2
- Compatible with DJI FPV Remote Controller 2 control equipment
- Equipped with 20GB built-in memory + MicroSD card slot up to 256GB
- Maximum digital video transmission distance: 10km
- Maximum latency: less than 40ms
- Minimum latency: less than 28 ms
- The camera module is built on a 48MP 1/1.7-inch CMOS matrix
- Camera lens: f/2.8 aperture; equivalent focal length 12.7 mm
- Field of view (FOV): 155°
- Video stream quality: 1080P at 100 frames per second
- Video codec H.265
- Video stream bitrate 50 Mbps
- Maximum video recording quality: 4K at 120 frames per second
- Image stabilization: RockSteady 2.0
- EMU data recording for manual stabilization refinement via software
- 10-bit D-Cinelike color profile
- Ability to adjust image sharpness and noise reduction level
- The camera lens is compatible with ND filters of FPV drones ND8/16/32
- Size: 32mm x 30mm x 14mm
Переглянути відгуки (0)
DJI O3 Air Unit Video System (Digital)
The DJI O3 Air Unit is the top-of-the-line solution that replaces the previously released DJI Digital FPV System. The new digital FPV system is built on flagship video technology and offers pilots the next level of FPV piloting and filming with an FPV drone, combining long-range, high-definition video streaming with low latency and improved video quality.
The O3 Air Unit camera measures 21.2 x 20 x 19.5 mm - the same as in the DJI Avata. The module is equipped with a 48-megapixel 1/1.7" (7.6x5.7mm) sensor with a fixed aperture of F2.8 and an ultra-wide angle of view of 155 °. It can shoot videos at resolutions up to 4K/60p, and the D- Cinelike color mode gives users more flexibility in video post-processing.
The data transmission system measures 32.5 × 30.5 × 14.5 mm and weighs 36 g. It is built on the DJI O3+ system and uses omnidirectional antennas built into the air module to transmit 1080/100p H.265 video with a bit rate of up to 50 Mbps. Video transmission is capable of covering a distance of up to 10 km with a latency of only 30 milliseconds, using its anti-interference technologies to keep the pilot in touch.
The O3 unit is compatible with the DJI FPV Goggles V2, which comes with the DJI FPV drone, and the Goggles 2, which comes with the Avata. The latter features a touchscreen, replaceable foam cushioning to reduce light reflection, and built-in diopters that can be adjusted from +2.0 to -8.0. It is also compatible with the DJI FPV Remote Controller 2, which allows users to fly in manual (M) mode.
DJI O3 AIR UNIT Specifications:
DJI O3 Camera Specifications:
DJI O3 Antenna Specifications:
Package:
