GEPRC MATEN 1.2G 2W VTX Video Transmitter
GEPRC MATEN 1.2G 2W VTX Specifications
Model: GEPRC MATEN 1.2G 2W VTX
Dimensions: 36.4×36.4×7.4 mm
Mounting Hole: 30.5×30.5 mm (M3)
Frequency Range: 1080 MHz - 1360 MHz
Channel Client: 9

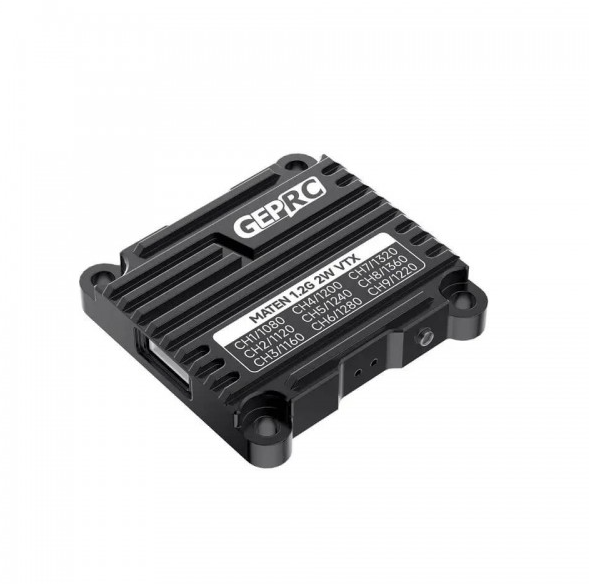

Channel Frequency: 1080/1120/1160/1200/1240/1280/1320/1360/1220 (MHz)
Output Power: 25 mW/400 mW/800 mW/2000 mW/Pit Mode
Frequency Stability: ±100 kHz (typ.)
Frequency Accuracy: ±200 kHz (typ.)
S/N (Fo±3 MHz): >70 dBc
Antenna Port: 50 Ohm
Input Voltage: DC 7-36 V (2-8 Slot Battery)
Output Voltage: 5 V @ 600 mA
Protocol: IRC Tramp

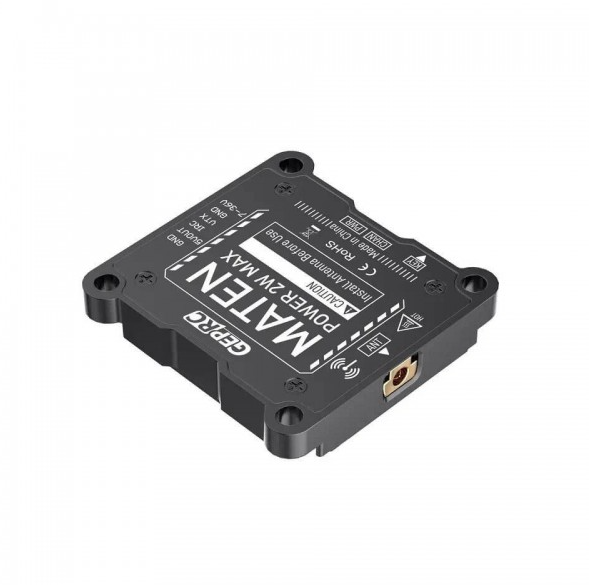

Antenna Interface: MMCX

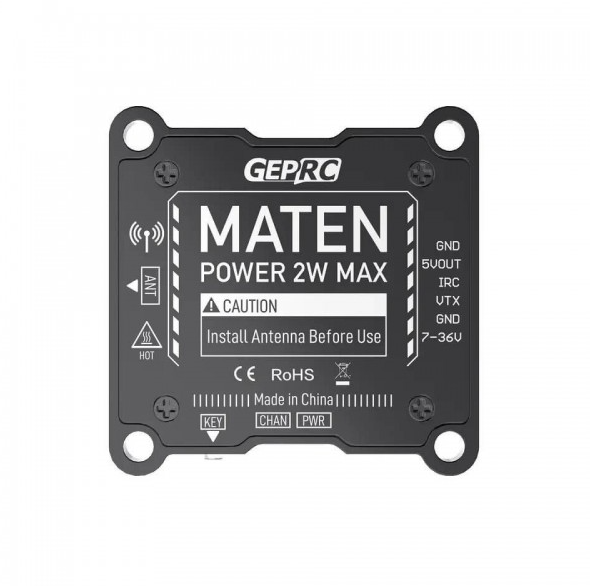

Cable Interface: SH1.25 6-pin
Video Format: PAL/NTSC
Operating Temperature: -10 ℃ ~ +60 ℃
Weight: 14.5 g (VTX only) Size: 36mm x 36mm x 7mm
| Count | Price |
|---|
| From | 1 | шт | 3920 | грн | | From | 2 | шт | 3842 | грн |
|
Переглянути відгуки (0)

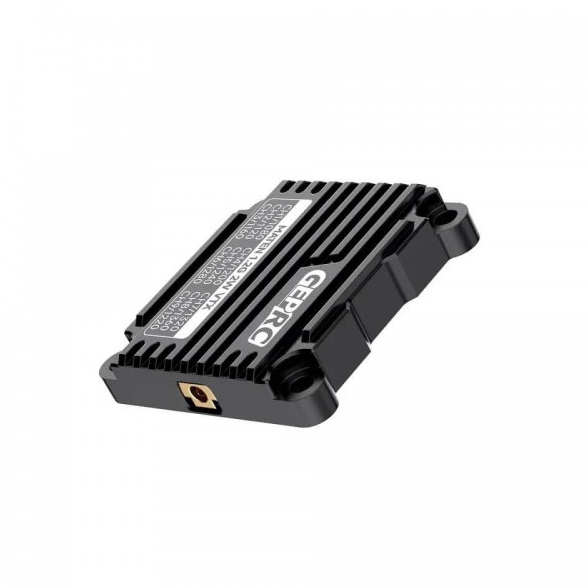

The powerful MATEN 1.2GHz 2W VTX image transmission device, newly developed by the GEPRC team, is now officially released. Its performance is very powerful, with four adjustable power levels and a maximum output of up to 2000mW. The transmission signal is very stable, and penetration is excellent. The MATEN 1.2GHz 2W VTX uses a CNC machined housing made of high-strength aluminum alloy to promote heat dissipation. Its unique exterior design improves impact resistance and heat dissipation.
It supports the IRC Tramp protocol and features an on-screen menu for quick parameter adjustments. It has a wide input voltage of 7-36V and a temperature control protection function to prevent overheating and burning. The installation hole position is 30.5 x 30.5mm (M3).
Features:
Four adjustable power levels, up to 2000mW, suitable for long-range flights
Additional channels
Selected high-strength CNC aluminum alloy shell, improved heat dissipation
Wide voltage input, supporting 7V-36V input.
One function button, two indicator lights, easy to operate.
VTX control protocol - IRC Tramp, supports OSD parameter settings.
Temperature control protection function that can prevent high temperature burning
Supports 30.5 x 30.5 mm (M3) mounting hole
Advantages:
High transmission power: Adjustable power of 25/400/800/2000 mW ensures a stable signal even over long distances.
Wide frequency range: Supports 9 channels in the 1080-1360 MHz range for flexible configuration.
Efficient cooling: The CNC-machined metal housing promotes effective heat dissipation.
Convenient operation: Support for the IRC Tramp protocol allows for quick settings changes via the OSD.
Versatility: Compatible with various power systems (7-36 V) and cameras.
Package Contents:
1 × GEPRC MATEN 1.2 GHz 2W VTX Video Transmitter
1 × MMCX to SMA Adapter
1 × SH1.25 6-pin Power Cable
