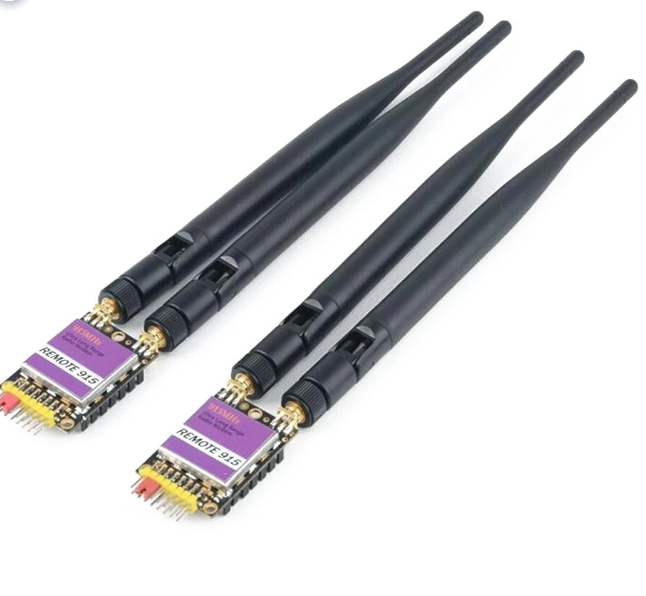

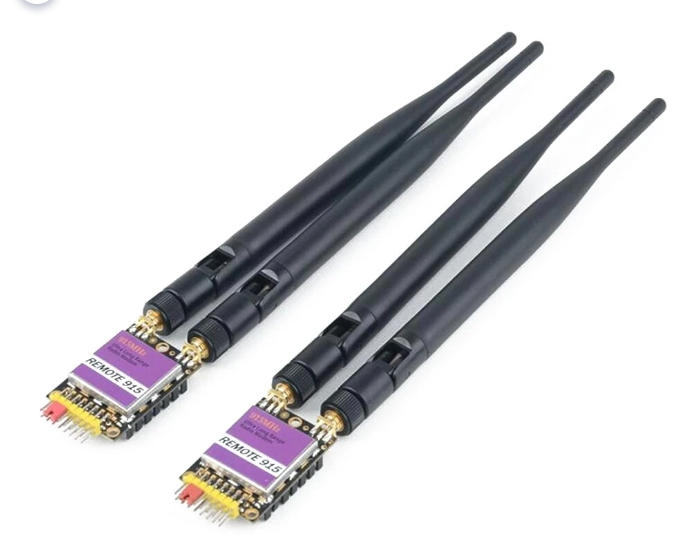

Long-range telemetry radio modem 2pcs RDF900 915Mhz for APM Pixhawk flight controller
Specifications:
- Frequency Range: 902 - 928 MHz
- Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical )
- Air Data transfer rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250 kbit/sec ( User selectable, 64k default )
- UART data transfer rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200 baud ( User selectable, 57600 default )
- Output Power: 1W (+30dBm)
- Receive Sensitivity: >121 dBm at low data rates, high data rates (TBA)
- Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
- Weight: 14.5g
- Mounting: 3 x M2.5 screws, 3 x header pin solder points
- Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
- Temp. Range: -40 to +85 deg C
- Long range >40km depending on antennas and GCS setup
- > 20dB Low noise amplifier. Size: 30mm x 57mm x 13mm
Переглянути відгуки (0)
Package included:
- 2 x RFD900 radio modem
- 4* antennas
- 1* FTDI module and USB cable
- 1* APM connection cable
- 1* PIX connection cable
