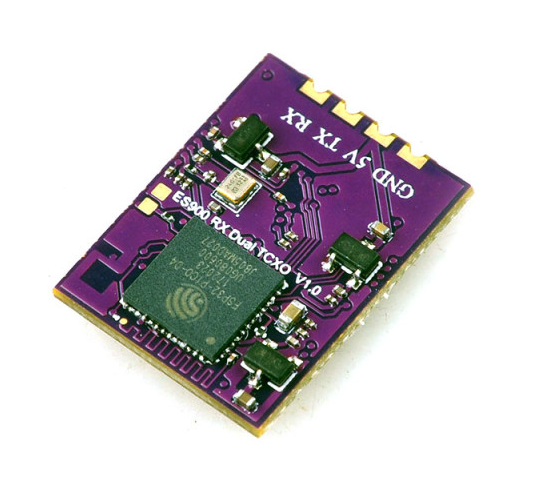

Receiver Happymodel ES900 DUAL RX ELRS Diversity 915MHz with two antennas

Receiver Happymodel ES900 DUAL RX ELRS Diversity 915MHz with two antennas

  • CHARACTERISTICS
  • Type: 915MHz/868MHz true diversity receiver
  • ESP32 PICO D4, dual SX1276
  • Antenna connector: IPEX MHF 1/U.FL
  • Radio frequency: 915MHz
  • Telemetry power: 17 dBm
  • Receiver protocol: CRSF
  • Input voltage: +5V DC @ "5v" pad
  • Built-in TCXO (temperature compensated crystal oscillator)
  • Firmware target: HappyModel ES900 Dual RX (latest version will be available soon)
  • Board size: 21.5mm x 16mm
  • Weight: 1.5g (without antenna)
  • Size: 21mm x 16mm x 3mm
  • Count Price
    From1шт1862грн
    From2шт1825грн
    From6шт1788грн
    From16шт1769грн
    From42шт1751грн
    Code: 1885
    шт.
    Є в наявності

    Переглянути відгуки (0)

    The HapReceiver Happymodel ES900 DUAL RX ELRS Diversity 868/915MHz with two antennas
  • DESCRIPTION

    pymodel ES900 DUAL RX ELRS Diversity 915MHz Long Range Receiver is the perfect addition to any of your quadcopters or drones! With its advanced 915MHz RF technology, it delivers superior signal quality and lower latency. You'll enjoy a reliable and clear connection with the Happymodel ES900 DUAL RX ELRS Diversity, flying longer, smarter and with more scope!

  • FEATURES

    True Diversity power: Dual SX1276 with ESP32 PICO D4

    Reliable powerful 17dBm telemetry

    Simple power supply: only +5 VDC required

    Almost weightless: only 1.5 grams (excluding antenna)

    Heat resistance: built-in TCXO to ensure stable operation

  • COMPLETION

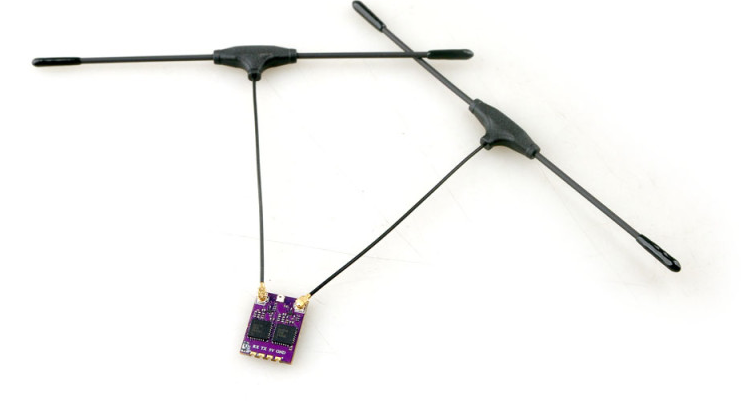

    1x Happymodel ES900 DUAL RX ELRS Diversity 915MHz Long Range Receiver

    2x T-shaped antennas

    The HapReceiver The HapReceiver8 The HapReceiver88
