GPS sensor Matek SAM-M10Q GNSS
Technical specifications:
GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
No built-in magnetic compass
Patch antenna: 15x15x4mm
Input voltage range: 4~9V (5V patch/contact)
Power consumption: 10mA
UART speed: 9600 by default
Operating temperatures: -20~80 °C
UART(TX, RX) interface for GNSS SAM-M10Q-00B
JST-GH-4P connector (SM04B-GHS-TB). Pitch 1.27mm.
GNSS PPS LED, green. (Lights up continuously after switching on, blinks (1Hz) when GNSS receives a 3D fix)
Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz

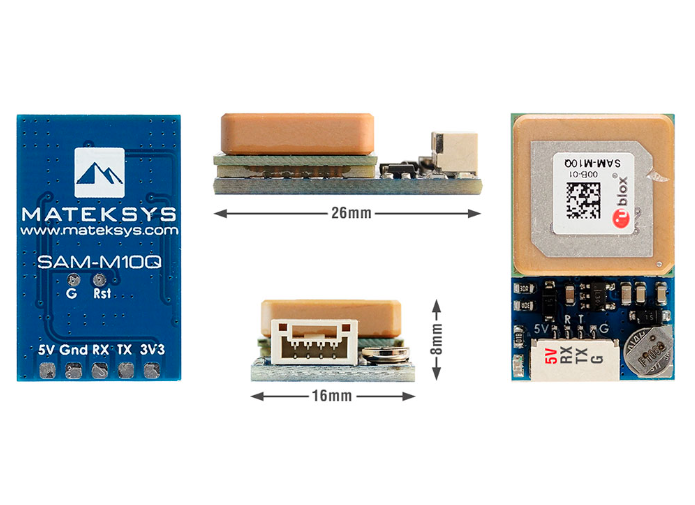

Dimensions: 26x16x8 mm
Weight: 7.5 g
Package Contents:
Matek SAM-M10Q GNSS

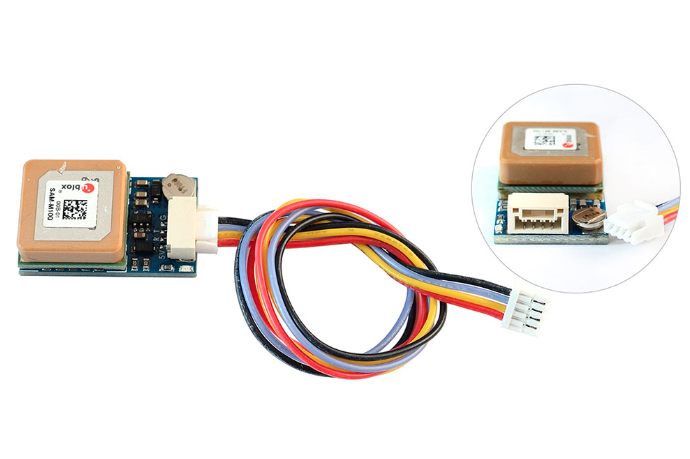

JST-GH-4P for JST-GH-4P 20 cm Size: 26mm x 16mm x 8mm
Переглянути відгуки (0)
Matek SAM-M10Q GNSS GPS Sensor
Features:
SAM-M10Q uses a GNSS module powered by the u-blox SAM-M10Q-00B.
SAM-M10Q features the standard u-blox M10 precision GNSS platform, providing exceptional sensitivity and acquisition time for all L1 GNSS signals. SAM-M10Q supports simultaneous reception of four GNSS (GPS, GLONASS, Galileo and BeiDou). The large number of visible satellites allows the receiver to select the best signals. This maximizes position availability, particularly in challenging environments. u-blox Super-S (Super-Signal) technology provides high RF sensitivity and can improve dynamic positioning accuracy in non-line-of-sight scenarios.
High gain patch antenna provides the best balance between performance and small size. Omnidirectional antenna pattern increases flexibility and ease of installation.
