Power module PM02D (2S-12S)
Specification
| Count | Price | |||
|---|---|---|---|---|
| From | 1 | шт | 3822 | грн |
| From | 2 | шт | 3746 | грн |
| From | 6 | шт | 3670 | грн |
Переглянути відгуки (0)
Description

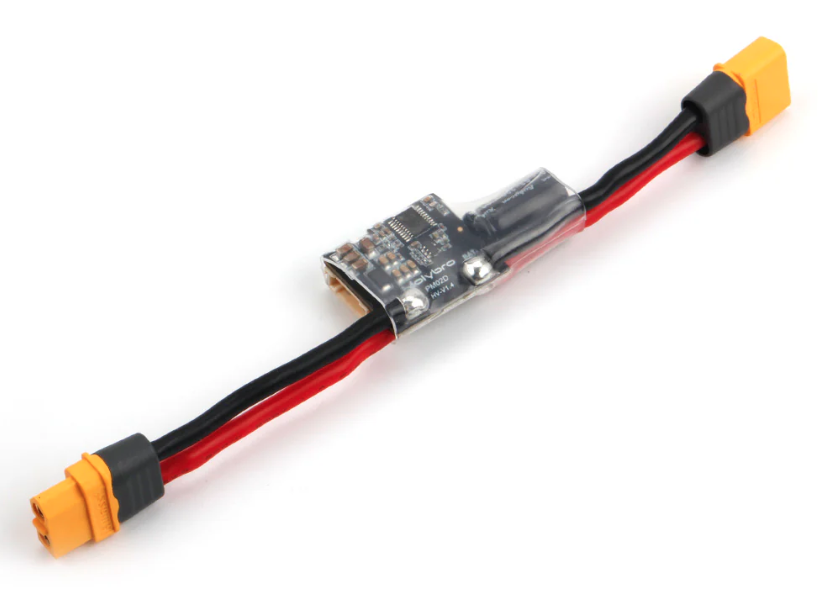

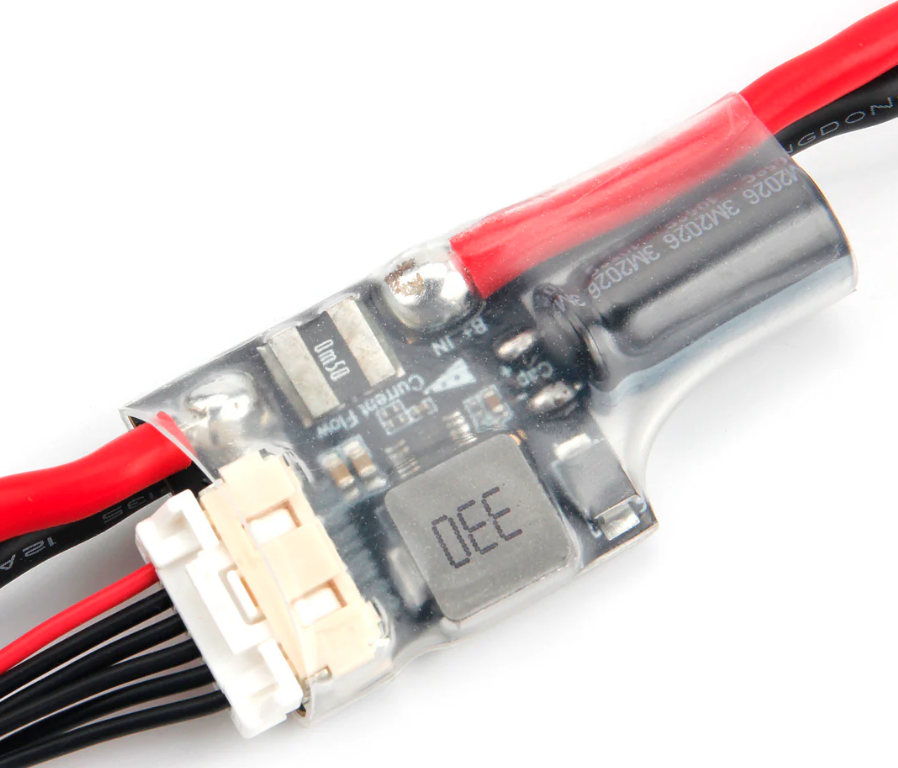

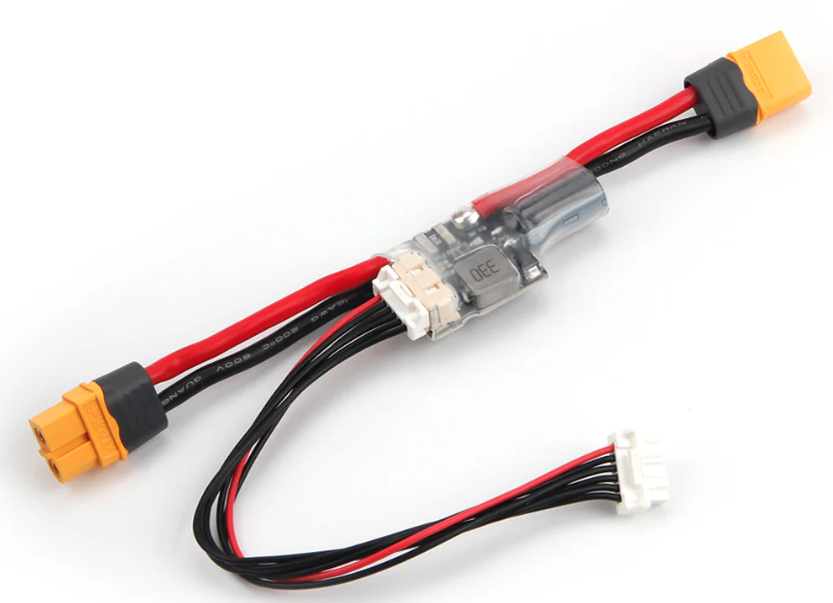

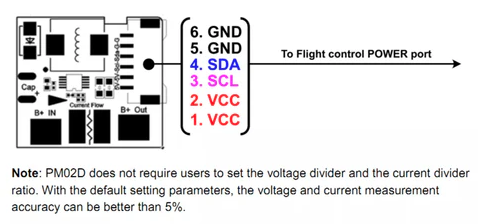

The PM02D provides regulated power for your Pixhawk® 5X and 6X from a battery, as well as measuring battery current and voltage, all via a 6-pin cable. The built-in switching regulator delivers 5.2V and a maximum of 3A from LiPo batteries up to 12S (HV). The power module comes fully assembled with XT60 connectors, wrapped in heat shrink tubing to protect against physical damage.
It is not intended to power servos, please use your aircraft's ESC/BEC for this. The Molex CLIK-Mate Wire-to-Board connector with a pitch of 2.00mm is rated for 3.0A per pin.
Specification
Current Rating:
The PM02D comes with XT60 plugs with 14AWG silicone wires rated for 30A continuous current and 60A pulse current (<1 minute). If higher current is required, the plug type and wire size should be changed accordingly. You can refer to this chart as a reference.
