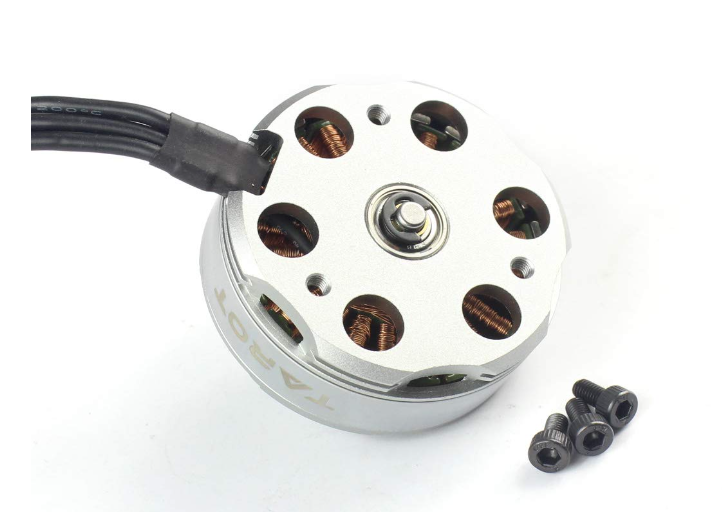

Tarot TL68P07 6S 380KV 4108 Multi-rotor brushless disk motor for quadcopter

---

Переглянути відгуки (0)

---

Tarot TL68P07 6S 380KV 4108 Multi-rotor brushless disk motor for quadcopter The 4108 / 380KV6S high-efficiency multi-rotor disc brushless motor is designed for four- and six-axis multi-rotor aircraft. It is manufactured using high-precision full CNC machining. The flat surface is smooth and seamless, and the balance is excellent. The newly designed high-efficiency turbofan cover provides powerful cooling airflow. The rotor is made of high magnetic NdFeB material. The stator is reinforced with high-strength epoxy resin to protect against high temperatures. The 22P high flux external rotor motor is particularly important. The balance correction has improved the vibration problem caused by the poor balance of conventional external rotation motors. The motor shaft is made of high-speed alloy steel. The upper and lower motor covers use large-scale high-speed precision bearings, which have the advantages of low friction torque, small power loss, impact resistance, and strong radial support at instantaneous high speed. The new generation 4108 / 380KV6S brushless motor has undergone rigorous dynamic, static performance, magnetic field performance, strong magnetic resistance to high temperature, demagnetization loss, motion vibration, noise, load performance and other engineering and technical demonstrations. Continuing with the advantages of TAROT brushless motors: long life, high efficiency, low power consumption, low noise, and stable control.

Product parameters:

Peripheral motor diameter: 46MM

Stator diameter: 40.6M

Stator Thickness: 8MM

Stator: 24 slots

Motor Poles: 22P

Diameter: 0.23MM

Gear shaft mounting diameter: ¢ 4MM

Motor height: 24MM

Motor shaft Full length: 32.50MM

Per volt Speed: 380 RPM / Volt

Motor Weight: 93G

Motor resistance: 135 mΩ

Load Current: 0.5A

Maximum thrust: 1620g

6S4108 brushless motor installation specifications: 27.7MM equilateral triangle

Propeller installation specifications: the main hole diameter 4mm, 3mm diameter side hole center distance 12mm

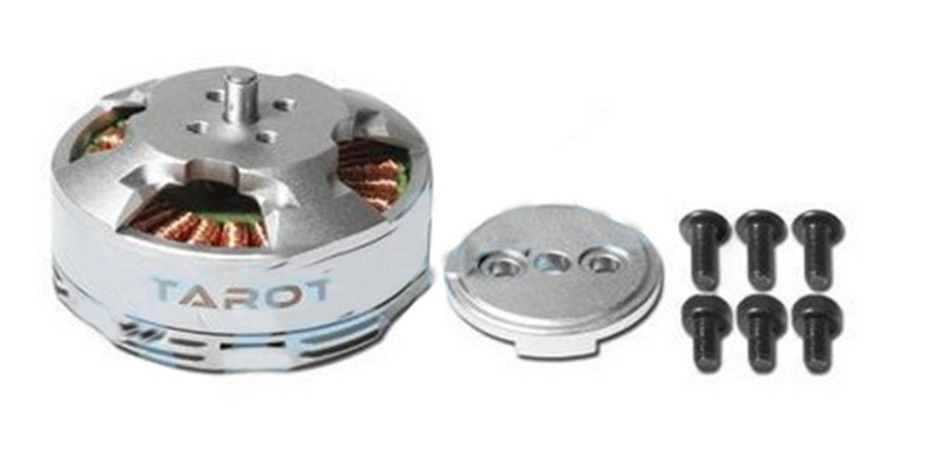

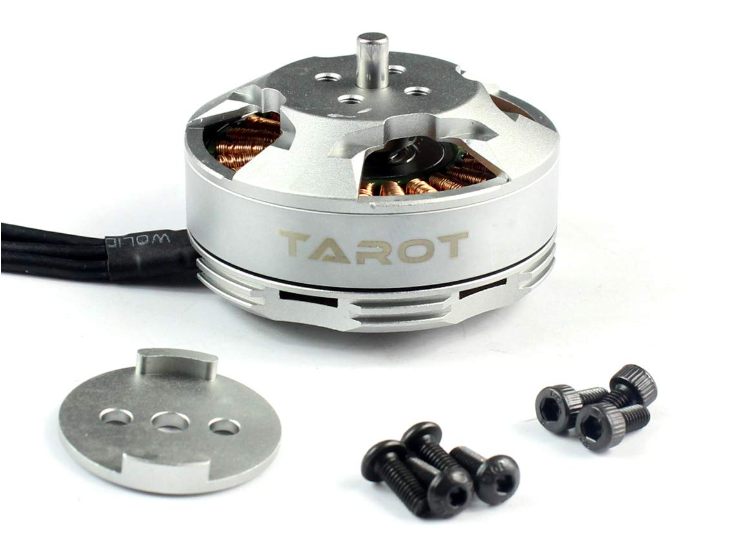

Specifications(just for one pcs):

6S 4108/380KV brushless motor 93G × 1

M3 × 6MM cup head screws × 3

M3 × 8MM round head screws × 2

Metal rotor mounting piece 2.5G × 1
