Brushless motor Emax EcoII 2807 6s 1300kv for Fpv racing drone

Brushless motor Emax EcoII 2807 6s 1300kv for Fpv racing drone

  • CHARACTERISTICS
  • Revolutions per volt: 1300KV
  • Configuration: 12N14P
  • Voltage: 3-6s LiPo
  • Shaft thread: CW
  • No-load current (10V): 1.3A
  • Peak current (6S): 52A
  • Maximum power: 1310W
  • Inner resistance: 48 mOhm
  • Recommended propellers: 6-7 inch
  • Shaft diameter: M5
  • Bearing Shaft: 4mm
  • Cable: 18AWG, 20cm
  • Mounting holes: 19mm x 19mm
  • Size: 34mm x 34mm x 34mm
  • Count Price
    From1шт1118грн
    From2шт1095грн
    From6шт1073грн
    Code: 1740
    шт.
    Є в наявності

    Переглянути відгуки (0)

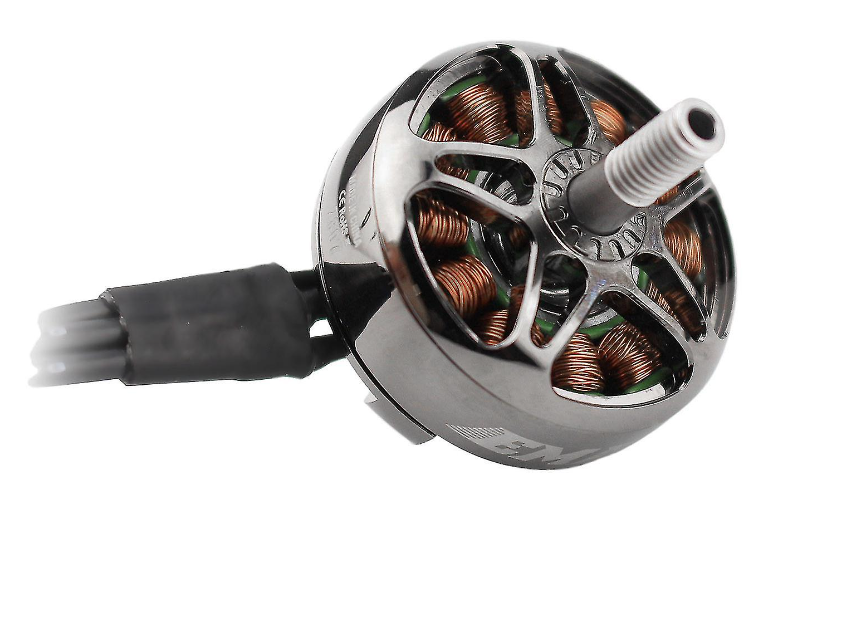

    Brushless motor Emax EcoII 2807 6s 1300kv for Fpv racing drone
  • Description.

    Brushless motor EMAX ECOII 2807 6S 1300KV 5S 1500KV 4S 1700KV for FPV racing drones Features: The ECO II 2807 stator is for 7-inch propellers for freestyle, heavy duty aircraft. EMAX engineers are always looking for ways to create the perfect motor using brushless technology. As a result, they have created the ECO II series, a new line of brushless motors that further improve performance and durability while maintaining the same affordable price. Redesigned from the ground up, the ECO II boasts a completely new architecture. A more rounded design combined with a thicker anchor ensures maximum durability. Finished with a reflective surface, the ECO II offers a modern design that combines aesthetics with durability. To improve on the performance of its predecessor, the ECO II uses N52SH spring magnets instead of the previous N48 magnets, which results in a stronger throttle response and higher rpm. More torque and thrust are generated, allowing pilots the flexibility to respond to the demands of any race track or flight situation. New design with rounded body and mounting points for increased durability. Fully mirror-polished finish that sparkles and shimmers in even the slightest ray of light. Updated N52SH curved spring magnets for tighter airflow and better performance. Massive 12mm EZO bearing for unmatched smoothness. 19x19mm motor mount.Precision bearingSteel shaftAnodized19x19mm hole patternMulti-strand winding200mm 18 AWG silicon wire SPECIFICATIONS: Brand: EmaxProduct Name: EMAX ECO II 2807 MotorFrame: 12N14Length: 34 mmDiameter: 33.9 mmNumber of cells: 3-6S 1300KVNumber of cells: 3-5S 1500KVNumber of cells: 3-4S 1700KVPropeller: 6"-7" Weight: 47.6g (W/O silicone wire) 1300KVWeight: 46.9g (W/O silicone wire) 1500KVWeight: 47. 9g (with silicone wire) 1700KVPropeller adapter shaft thread: M5Support shaft4 mmShaft threadCWU.

    Brushless motor Emax Ecoii 28076 Brushless motor Emax Ecoii 280756 Brushless motor Emax Ecoii 280754
