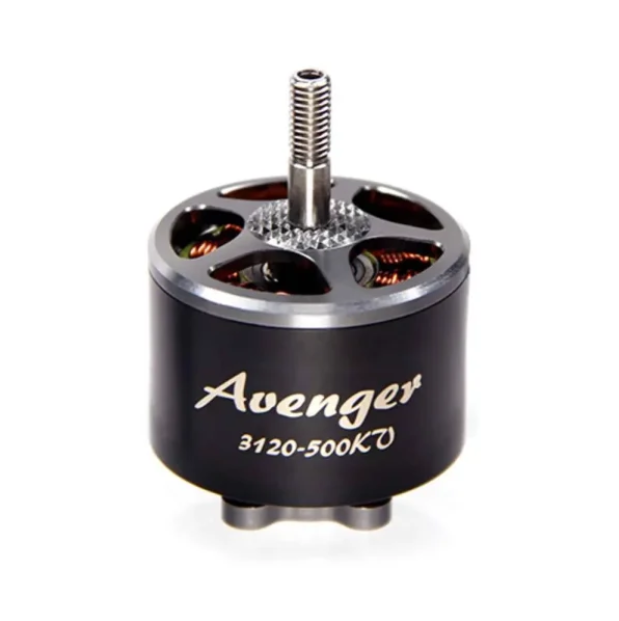

BrotherHobby Avenger 3120 500kv brushless motor

Technical characteristics

KV: 500KV
Base plating: Al 7075
Stator: 0.2mm silicon steel Kawasaki
Configuration: 12N14P
Different shaft of support support adapter: M5
Shaft: Titanium alloy hollow shaft
Cell Count (Lipo): 8S/12S
Bolt type: M3 (19X19 mm)
Bearings: Japanese NMB 11x5x5mm
Rotor: N52H arc magnets
AWG wire: 16AWG 30cm long
Cap: Al 7075
Size: 36mm x 36mm x 52mm

Count			Price
From	1	шт	3869	грн
From	2	шт	3791	грн
From	6	шт	3714	грн
From	16	шт	3675	грн
From	42	шт	3636	грн

Переглянути відгуки (0)

recommended products:


The power module 102 MB + 830 Solderless prototyping board	FlySky FS-i6 with receiver FS-iA6	Mayatech TOC80 electric starter for gasoline engines 20-80cc	White LED 10 Watt	Syma W25 radio controlled mini helicopter	Brushless motor Tarot 6008 285KV TL60P08 for multi-rotor

BrotherHobby Avenger 3120 500kv brushless motor

BrotherHobby Avenger 3120 Motor is a brushless motor designed for efficient and powerful use on bagrotor drones and aerial platforms. This series of motors is available in two speed options, 500KV and 700KV, and is designed for applications that require high thrust, stability and exceptional performance. With a large stator diameter and high-quality aluminum housing, these motors are ready to provide reliable and efficient operation in a variety of conditions. No matter what RPM you choose, the BrotherHobby Avenger 3120 Motor will be a powerful addition to your project, providing plenty of thrust and a high level of performance to meet your goals.

Бесколлекторный двигатель BrotherHobby Avenger 3120 500kv

Detailed specifications of BrotherHobby Avenger 3120 Motor – 500KV/700KV:

Motor type: BrotherHobby Avenger 3120 is a brushless motor. Brushless motors are known for their high efficiency, durability and reliability.

Rotational number (KV): 500KV: This variant has a very low rotation number of 500KV. It is designed to generate a lot of thrust and stability, making it ideal for heavy drones or vehicles that carry large loads.

Stator size: The diameter of the stator is 31 mm.

Weight: The weight of the motor is usually about 135 grams.

Body material: The motor body is made of high-quality aluminum, which provides effective heat dissipation and a long service life.

Number of stator poles: The stator has 12 poles, which improves the accuracy and stability of rotation.

Operating Voltage: These motors are designed to operate at either 6S (22.2V) or 8S (29.6V), depending on the RPM option.

Mounting thread: Motors have a standard M3 mounting thread for mounting propellers.

Applications: BrotherHobby Avenger 3120 Motor is designed for use on large bugrotor drones that require high thrust and stability. They are suitable for a variety of applications, including aerial photography and videography, research, racing and transporting large loads.

Бесколлекторный двигатель BrotherHobby Avenger 3120 500kv2
