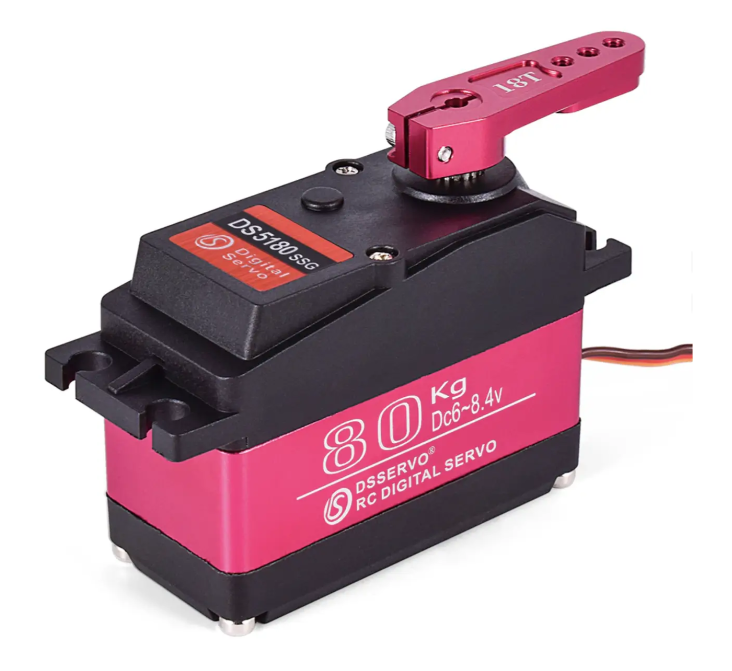

Servo drive with high torque DSSERVO DS5180 80 kg 7.4v
- Features:
- Brand: DSSERVO
- Product: RDS5180 digital servo drive
- Type: 180 °
- Operating Voltage: 6.0-8.4 DC Volts
- Rack Current: 3.5A/5A/6.2A (6.0V/7.4V/8.4V)
- Torque: 58 lbs. Sm (6.0 V), 65kg. Cm (7.4 V), 70kg. Cm (8.4 V)
- Speed: 0.17 sec/60 ° (6.0 V), 0.15 sec/60 ° (7.4 V), 0.13 sec/60 ° (8.4 V)
- Pulse: 500-2500us
- Frequency: 50-333Hz
- Dead band: 3us
- Neutrol position: 1500us
- Control: PWM
- Rotation: 180 °/ 270 °
- Gear: Metal gear
- Teeth: 25T
- Wire: 300mm
- Application: For RC Robot Arm DIY
- Size: 60mm x 30mm x 48mm
| Count | Price | |||
|---|---|---|---|---|
| From | 1 | шт | 2352 | грн |
| From | 2 | шт | 2305 | грн |
| From | 6 | шт | 2258 | грн |
| From | 16 | шт | 2235 | грн |
| From | 42 | шт | 2211 | грн |
Переглянути відгуки (0)

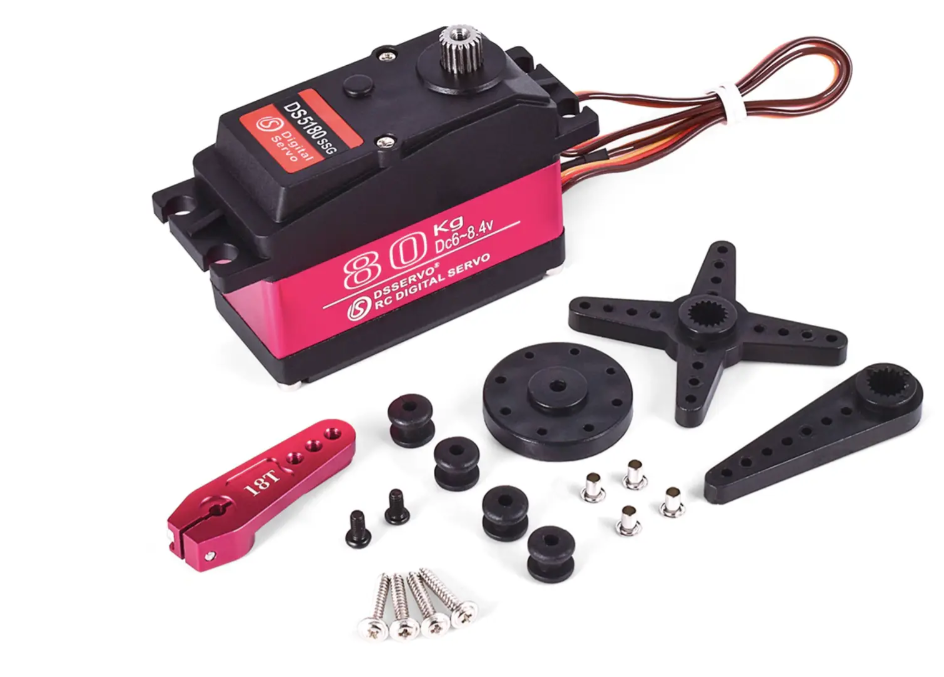

DSSERVO RDS5180 80 cg. 7.4v
Features:
1. It has sturdy metal gear, double ball bearing, programmable digital amp with Mosft actuator.
2. Lateral axial mounting hole, it is original factory product.
3. Less noise, fork/output wheel/radio control system is compatible with Futaba JR Hitec.
Made of durable material, this servo is a great part for a robot.
Partition:
Size: 65*30*48 (servo drive)
Weight: 162g
Wire length: 320mm
Speed:0.17 sec/60 degrees at (6v)
0.15 sec/60 degrees at (7.4 V)
0.13 sec/60 degrees at (8.4 V)
Torque: 58 lbs. See apartments (6v)
65 kg. See at (7.4v)
70kg. See at (8.4v)
Voltage: 6v-8.4v
Deadzone setting:3 microseconds
Notes:
1. There is a margin of error of 0-1 inch due to manual measurement. Thank you for your understanding.
2. Monitors are not calibrated the same way, the color of the item shown in the photos may be slightly different from the real object.
Tips:
If you need more catalogs or other special services, please contact us, thank you!
Delivery capacity: 100000pcs/month
This Servomotor for robot matches the brackets below and is suitable for making walking robots
