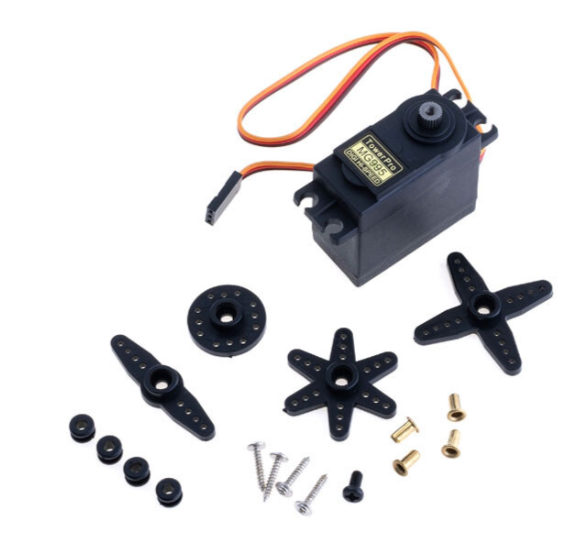

Servo drive MG 995
Characteristics:
- Gearbox: plastic (nylon)
- Rotation angle: 180 degrees
- Operating speed: 0.17 sec/60 degrees (4.8V no load)
- Working speed: 0.13 sec/60 degrees (6V no load)
- Starting torque: 8.5 kg/cm at 4.8V power supply
- Starting torque: 10 kg/cm at 6V power supply
- Operating voltage: 4.8 - 7.2 V
- Operating environment temperature: 0 ~ +55 °C
- Shaft diameter: 5.7 mm
- Wire length 30 cm
- Dimensions 40.7 x 19.7 x43 mm
- Weight 55 g
- Size: 40mm x 20mm x 43mm
| Count | Price | |||
|---|---|---|---|---|
| From | 1 | шт | 628 | грн |
| From | 2 | шт | 615 | грн |
Переглянути відгуки (0)
recommended products:
Tower Pro MG995 13 kg servo drive is a clone of the popular servo motor. The control is not on a digital microcontroller like the original, but on an analog microcircuit (usually KC2462 or AA51880), due to which it was possible to significantly reduce the price with the same drive parameters. Powerful servomotor - torque up to 13 kg/cm (with a supply voltage of 6V).
