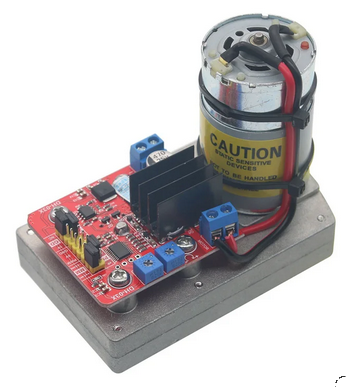

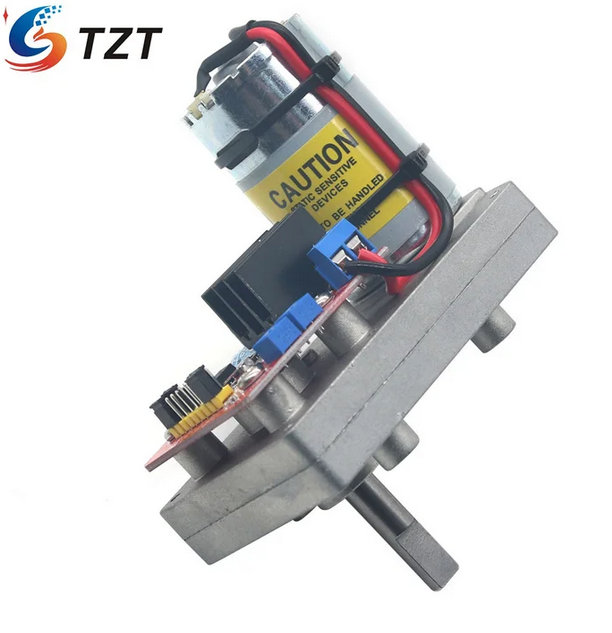

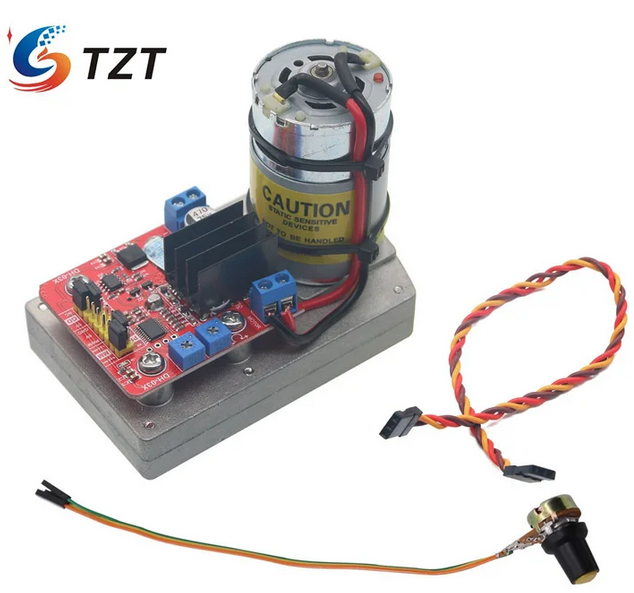

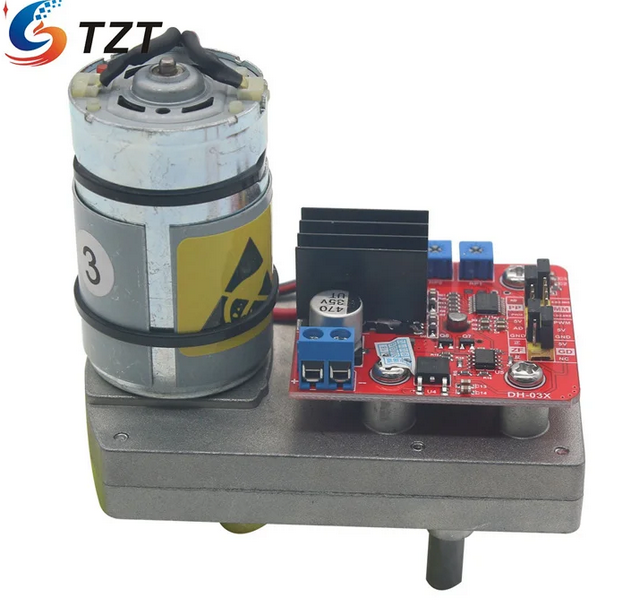

TZT DC 12V/24V DH-03X High Torque Alloy Servo Motor 380kg/cm 160A
Technical characteristics:
- Voltage: 12-24 V
- Load current Np: <500 mA
- Maximum torque:
- 380kg.cm(24V)
- 3648 Ncm (24 V)
- 190 kg.cm (12 V)
- 1824 Ncm (12 V)
- Angular speed: 0.5s/60 degrees (24V) 1.0s/60 degrees (12V)
- Rotation angle: maximum 300 degrees
- Input mode: PWMIN/ADIN
- Pulse input range: 0.5-2.5ms
- Voltage input range: 0V to +5V.
- Accuracy: 0.32 degrees
- Gear: steel
- Size: 95mm x 60mm x 102mm
| Count | Price | |||
|---|---|---|---|---|
| From | 1 | шт | 2940 | грн |
| From | 2 | шт | 2882 | грн |
| From | 6 | шт | 2823 | грн |
| From | 16 | шт | 2793 | грн |
