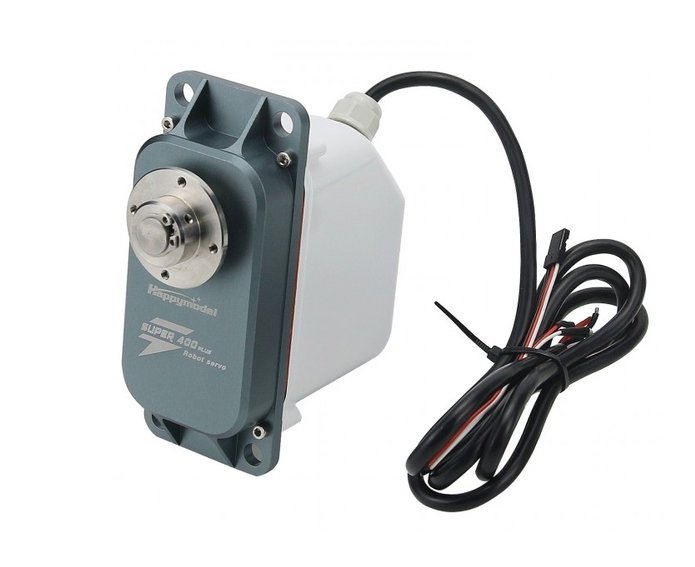

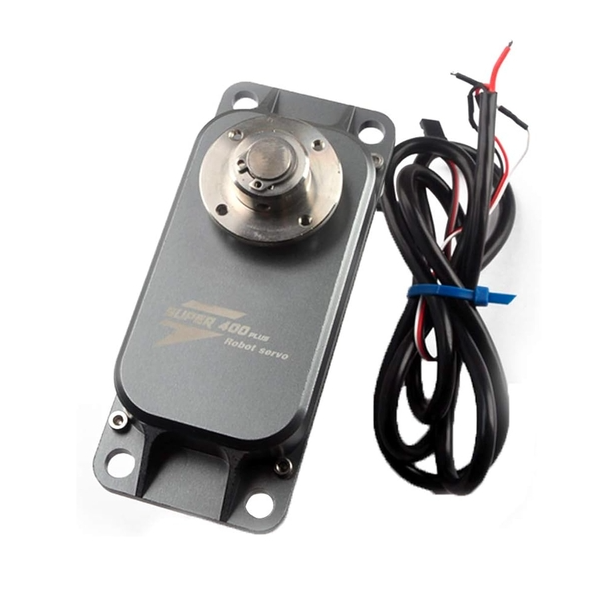

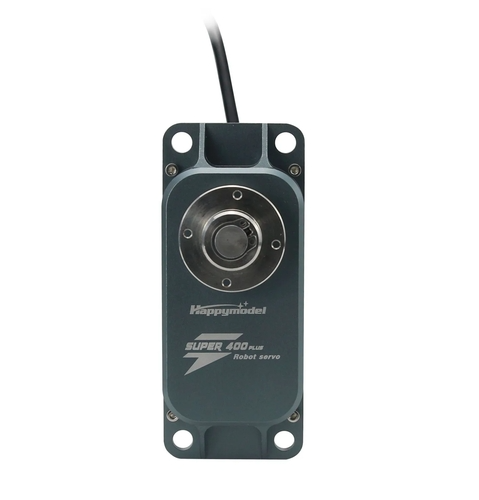

HappyModel Super400 Plus 400kg servo

Specifications

• Voltage: 24 V (recommended battery power, can be adjusted if higher voltage is required)
• Speed ​​(no load): 24 V approx. 0.75 sec/60°
• Maximum torque: 400 kg.cm
• Rated torque: 140 kg.cm
• No-load current: <0.15 A
• Stall current: 24 V: <14 A

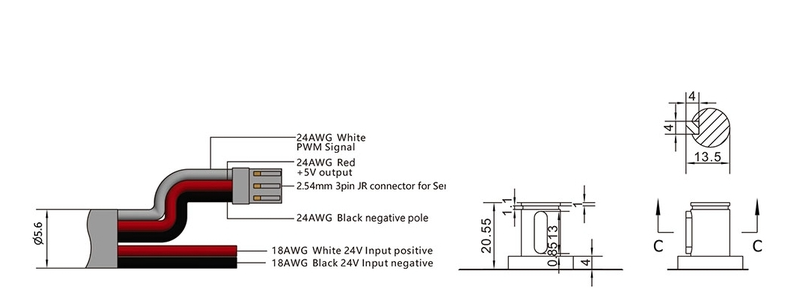

• Input signal: PWM: 800–2200 μs, 50–400 Hz
• Operating angle range: adjustable: minimum ±30°, maximum ±150°

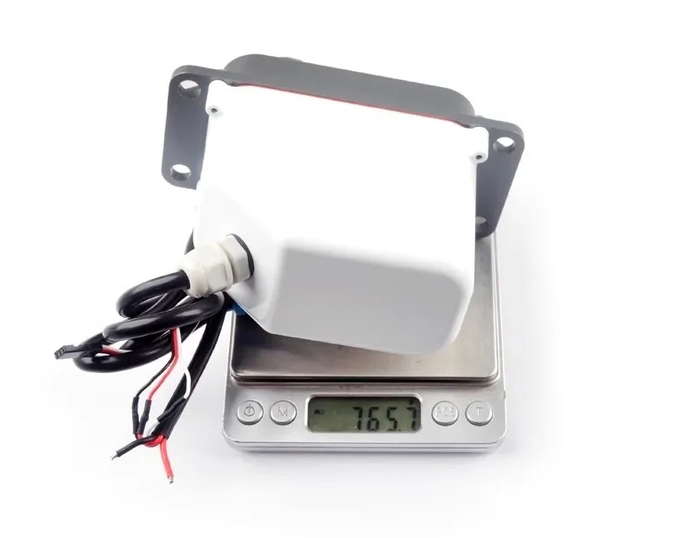

• Weight: 765 g
• Application: Industrial robot manipulator.

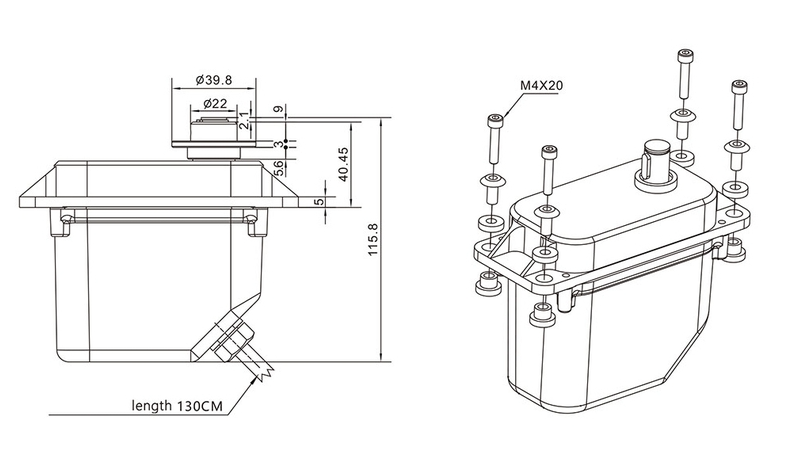

• Dimensions: 132 x 55 x 116 mm
• Size: 132mm x 116mm x 55mm
