Radiomaster Boxer ELRS M2 control panel
Features:
Model: RadioMaster Boxer ELRS
Region: FCC
Version: M2
Internal transmitter frequency: 2.400GHz-2.480GHz
Firmware of internal transmitter: ELRS
Radio firmware: EdgeTX
External module bay: JR compatible, supports MicroTX Crossfire and ELRS
Screen: Monochrome LCD 128*64
Sticks: 4.0 Hall gimbals
SD card: 256MB by default, 8GB maximum possible
Working voltage: 6.6-8.4v DC
Power battery: 2pcs 3.7V Li-Ion18650 or 2S Li-Ion 6200mAh (not included)
Size: 235mm x 178mm x 77mm
Переглянути відгуки (0)
The
BOXER is the ideal choice for pilots on the move thanks to the perfect combination of size and ergonomics. With full hall-effect gimbals for precise control and an intuitive button layout,
BOXER gives you a compact radio without sacrificing comfort and functionality.
Features
Available with integrated ExpressLRS or 4-in-1/CC2500 MPM RF modules.
Built-in powerful STM32F407VGT6 with 1MB Flash memory and 192KB RAM.
EdgeTX firmware pre-installed.
Internal ELRS module with the ability to update 1,000 times per second.
Adjustable ELRS output (max 30dBm for FCC or 20dBm for EU LBT).
4-in-1 or CC2500 versions are capable of 20dBm RF output.
Support QC3.0 fast charging with a maximum current of 2.0A.
Compact design with excellent ergonomics.
New low-profile SE switch and SF momentary switch.
Spacious battery compartment - space for a 6200 mAh 2S battery that provides up to 20 hours of battery life (batteries not included).
V4.0 full-size hall-effect gimbals as standard, upgradeable to AG01 CNC hall-effect gimbals.
Standard compartment for JR modules.
Built-in fan for module cooling (version with ELRS).
Standard RadioMaster button layout.
Universal switch with 6 positions to access flight modes.

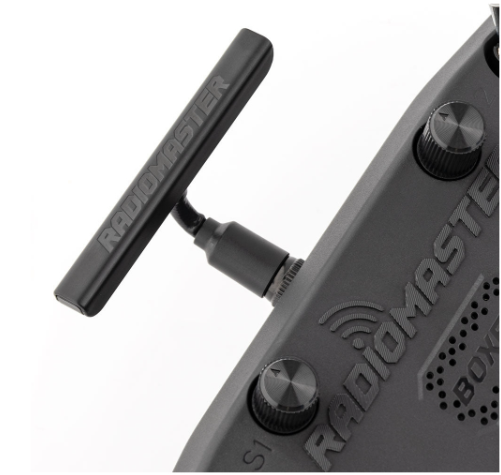

Adjustable and removable T-shaped antenna.
Industry-first fabric handle for easy portability.
Changeable ergonomic grips.
Redesigned SD card slot with pre-loaded SD card.
Slots for powering external modules in the battery cover.
The BOXER comes with a standard RadioMaster branded case and a protective mat for the gimbals, which ensures the safety of your radio while on the move.
Specification
Product: Radio BOXER.
Size: 235*178*77 mm.
Weight: 532.5 g.
Frequency: 2.400 GHz - 2.480 GHz.
Internal RF options: CC2500 multiprotocol / 4-in-1 multiprotocol / 2.4GHz ELRS.
Supported protocols: depends on the module.
Transmission power of CC2500 and 4IN1: Max. 20 dBm.
ExpressLRS transmission power: Max. 30 dBm (international) / Max. 20 dBm (EU LBT).
Cooling fan: Built-in (ELRS version).
Voltage range: 6.6-8.4 VDC.
Radio firmware: EdgeTX (transmitter) / Multi-Module (RF module) / ELRS.
Channels: Max. 16 channels (depends on the receiver).
Battery: 7.4V Li-Polymer 2-cell / two 3.7V Li-ion 18650 cells (batteries not included).
Display: 128*64 monochrome LCD display.
Gimbals: High precision 4.0 hall effect gimbals as standard (optional AG01).
Outer module: Compatible with JR/FrSKY/Crossfire.
Update method: USB/SD card and EdgeTX Companion software for
Complete:
1 x RadioMaster Boxer ExpressLRS drone control panel (HP0157.0043-M2)
1 x Protective branded case
1 x T antenna
1 x Protector for sticks
1 x Container for 18650 batteries
1 x USB-C cable
1 x Protective film for the screen
1 x Hex key 1.5 mm
2 x M4*4 screws
4 x Low tension springs
1 x Stickers
1 x Instruction
