APM / PIXHAWK / PX4 5V & 12V BEC vibration isolation and pervomodule

tribution panel, current and voltage sensors, 5VBEC, 12VBEC, damper plate, 5 in 1, copper thickened, overcurrent can reach 90A, integrates current and voltage sensors, and supports 3S-6S input current.

voltage is suitable for APM, PIX and others, also with 12V and 5V BEC, BEC has increased the LC filtering level, greatly reducing the ripple power output, 12V and 5V output is cleaner, 12V and 5V support 3A current.

ideas, using black heavy gold PCB, APM power supply module and ESC distribution board integrated into the damper plate, reusable, can enable your aircraft to reduce unnecessary wiring, and the power supply module socket can meet the publicly available APM2.5/2.6/2.8 version and PIXHAWK flight control

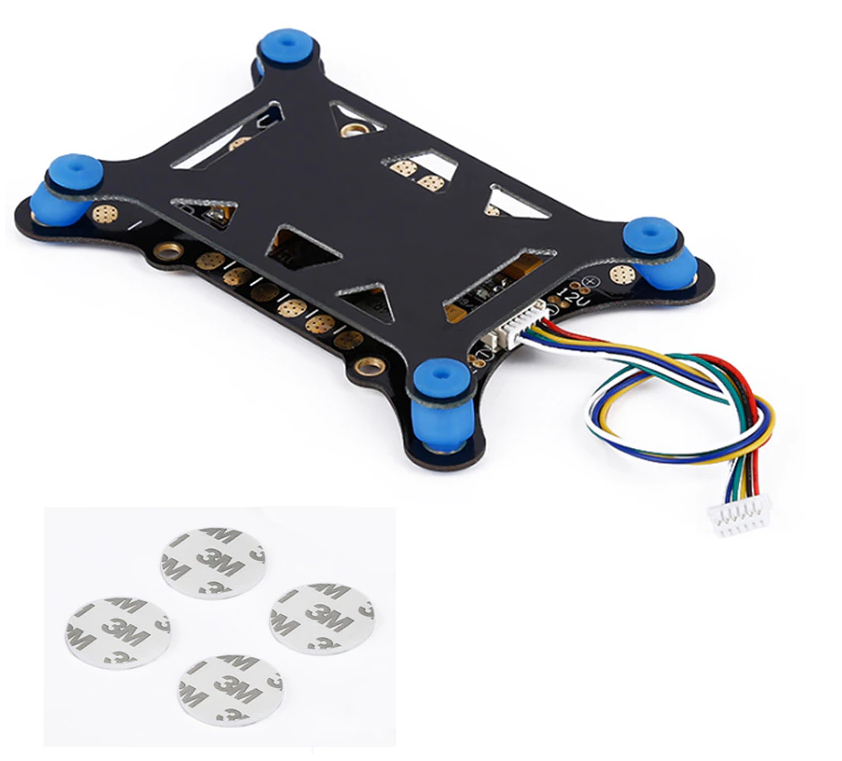

in 1 (distribution board, current/voltage sensor, 5V and 12V BEC, shock absorber)

uitable for APM and PIX flight control.

ll these functions are combined in one black PCB. Maximum current up to 90A, current voltage sensor supports 3S-6S input power.

V/12V pure output, 3A current is supported, we add a single level LC filter to the BEC to reduce ripple during power on.

5n-1 design that saves unnecessary cables for your aircraft.

power module can be connected directly to APM2.5/2.6/2.8 and PIXHAWK.
