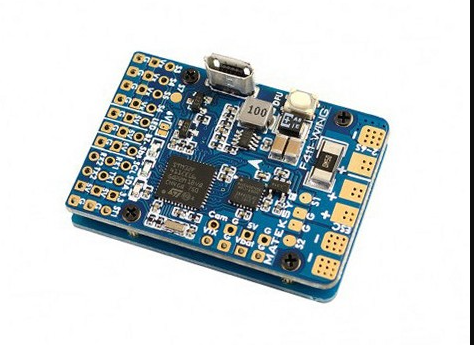

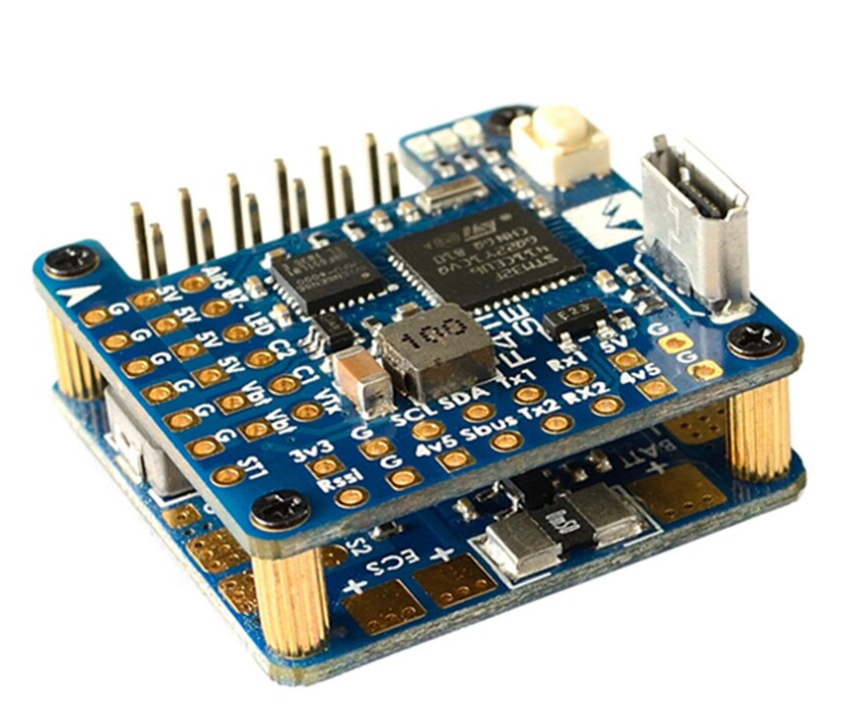

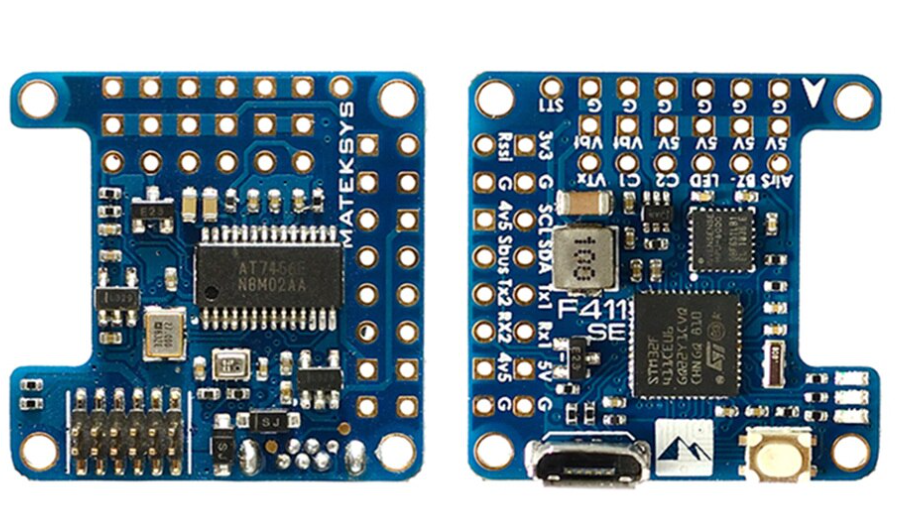

Matek Systems F411-WING STM32F411 Political Controller

MCU: STM32F411 100MHz

Accelerometer/gyroscope: MPU6000 (SPI)

Barometer: BMP280 (I2C)

OSD: INAV OSD with AT7456E chip

Blackbox: none

UART outputs: 2

Motor outputs: 2

Servo outputs: 4

I2C ports: 1

ADC: 4 (VBAT, Current, RSSI, AirSpeed)

3 x LEDs for FC STATUS (blue, red) and 3.3V BEC (red)

Softserial-TX: 2

Switchable inputs for two cameras: Yes

TR/SA VTX control: Yes

WS2812 LED Control: Yes

Output for squeaker: Yes

RSSI: there is

Voltage divider for analog Airspeed sensor: yes

Firmware: iNAV

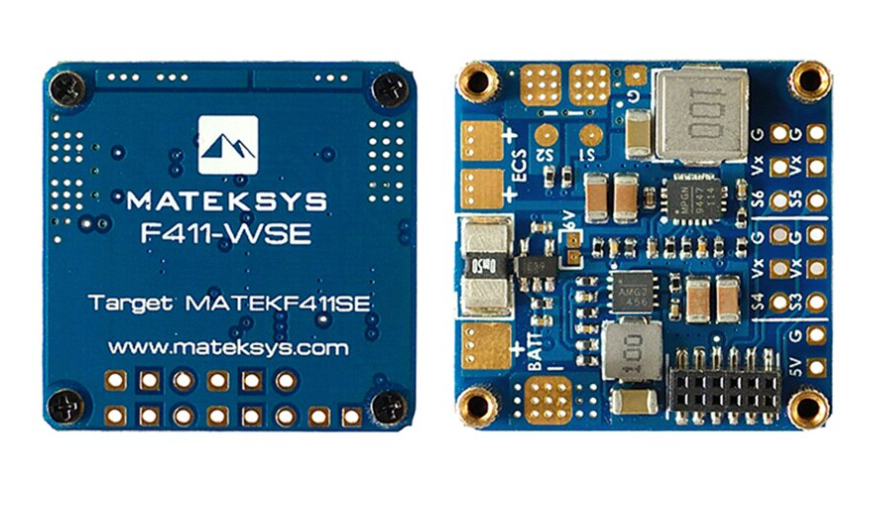

Target: MATEKF411SE

Mounting: 24 x 24 mm, 2mm diameter holes

Dimensions: 28 x 28 x 14 mm

Weight: 8.5

Input Voltage Range: 6.5 ~ 30V (2 ~ 6S LiPo) with TVS protection

Outputs for ESC: 2

Voltmeter scale: 1:10 (1100 scale)

Current sensor: 78A, 3.3V ADC, Scale 423

BEC 5V output

Designed for flight controller, receiver, OSD, FPV camera, buzzer, 2812 LED module, GPS, AirSpeed module

Continuous current: 2A, max. 3A (5 sec/min)

BEC Vx output

Designed for servo drives

Adjustable voltage: 5V by default, 6V with jumper

Continuous current: 3.5A, max. 5A (5 sec/min)

BEC output 3.3V

Designed for Baro / Compass / OLED and Spektrum RX modules

Linear regulator

Continuous current: 200mA
