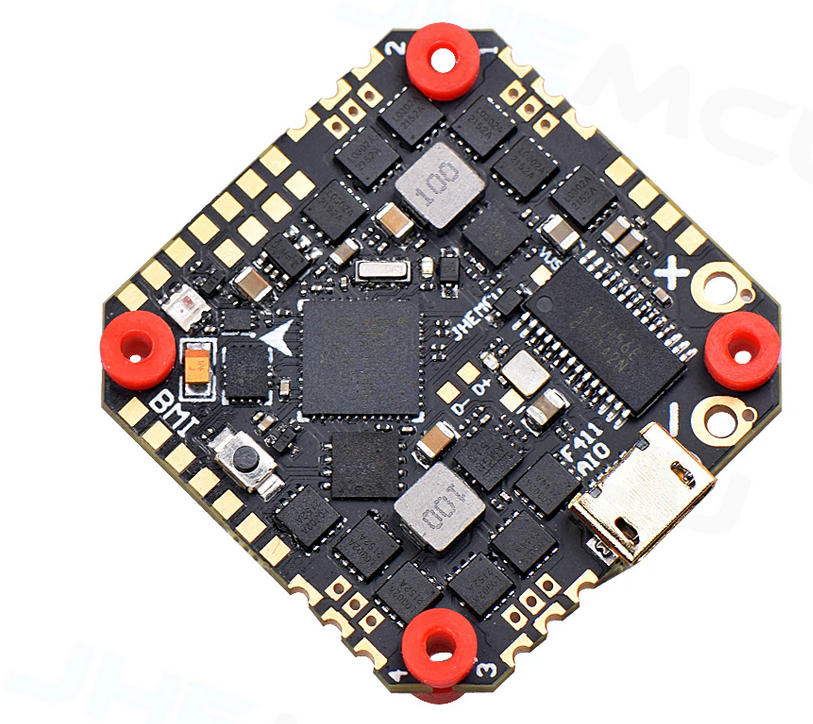

JHEMCU GHF411AIO-ICM 40A F411 ICM42688P BLHELIS 40A 4in1 flight controller

Model: GHF420AIO-ICM

MCU: STM32F405RG/168 MHz

IMU: ICM42688/Gyro/Accel

OSD: AT7456E

Baro: None

Blackbox: 8 MB

Input voltage: 2-6S Lipo (7.4-27 V)

5 V BEC: 5 V/2.5 A ±0.1 V

10 V BEC: 10 V/2 A ± 0.1 V

Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX

UART: UART1, UART2, UART3, UART6

Size: 30mm x 30mm x 6mm

Price:

3675 грн

recommended products:


DPS5015 lowering programmable power supply (Laboratory power supply unit)	Motor Wheel 350W 36 V gearbox	3 nF capacitor - 50V	BrotherHobby Tornado T5 3115 PRO 640kv Brushless Motor	ISD1820 voice module	DC-DC Adjustable Step-Down Converter 12-120 to 1.25-48V

JHEMCU GHF411AIO-ICM 40A F411 ICM42688P BLHELIS 40A 4in1 flight controller

LED strip: Support

buzzer: Support 5V Active

ESC signal: PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

USB: Micro USB

Current port: YES

Voltage sensor: YES

DFU button: YES

Firmware: Betaflight -4.3.0 JHEF405.HEX

ESC current: 40 A

MCU: EFM8BB21F16G

Type:

BLHELI-S current sensor: YES

Firmware: GH-30-REV16-7.HEX

YES Support size: 30*38mm

Mounting holes: 20*20*3 mm

Weight: 8 g
