Flight controller JHEMCU GHF13AIO-BMI 2-4S F4 BMI270 STM32F411
Specifications:
Model: GHF13AIO-BMI
Main material: PCB, electronic component
Main control unit (MCU): STM32F411CEU6100MHZ
Sensor (IMU): BMI270GyroAccel
Video overlay (OSD): AT7456E
Input voltage: 2S-4S (7.4V-17V)
5V- BEC: 5V2A +0.1V

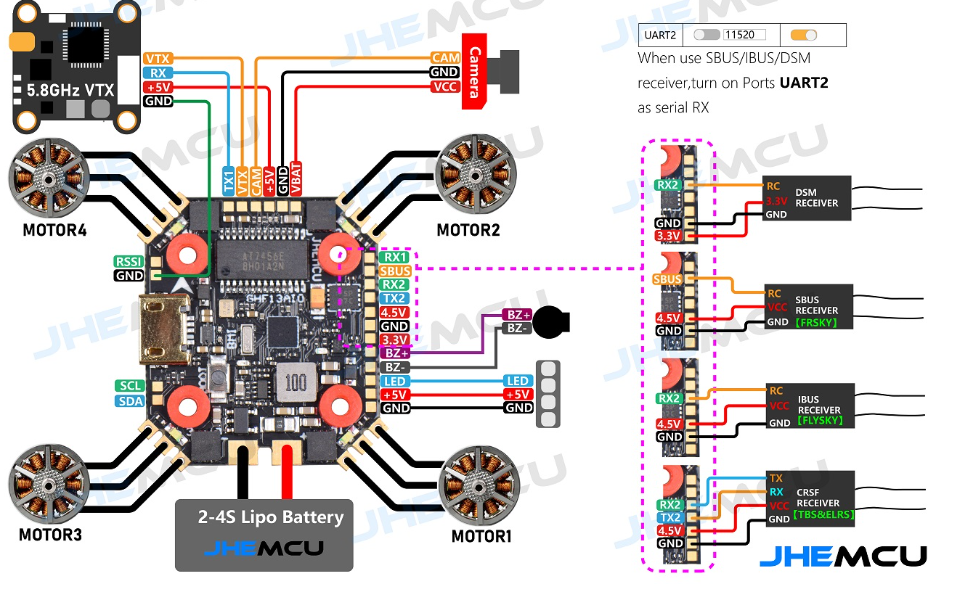

: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
USART: UART1, UART2
IIC: Yes
Led_ Strip: Yes.
Sound signal: Support 5V Active
ESC signal: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
USB: Micro USB current meter
(current): Yes
Voltage sensor: Yes
Firmware: betaflight_ 4.3.0 MATEKF411.
Mounting hole: 16*16*3 mm
Color: black
Rated current (current): 13 A
Main control unit (MCU): EFM8BB21F16G
Type (TYPE): BIheli S
Firmware: GH 30 REV16 7. HEX. Size: 24mm x 28mm x 4mm
Переглянути відгуки (1)
JHEMCU GHF13AIO-BMI 2-4S F4 BMI270 STM32F411 flight controller
Premium PCB and electronic components, rugged and durable, with a long service life.
With rational planning, installation and connection are very easy.
A great choice for your remote control racing drone.
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.
Includes 1* F4 FC AIO 13A ESC board, 2* power cable - 18AWG, 1* XT30 connector, 1* 220UF25V electrolytic capacitor and 4* M2*6.5 shock absorbing ball.
