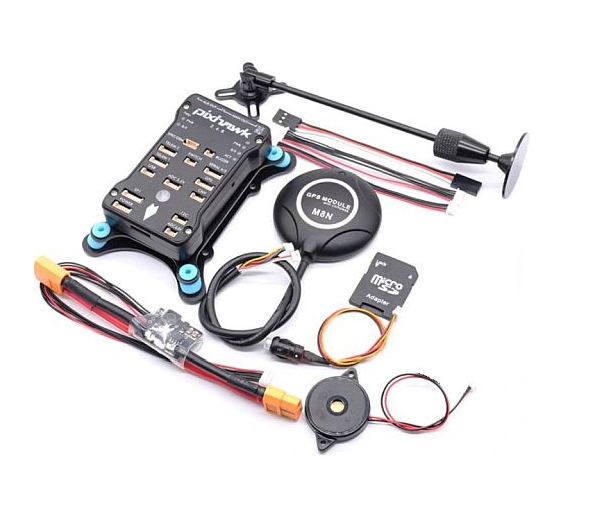

Pixhawk PX4 2.4.8 Polo Controller with GPS M8N FULL Combo
| Count | Price | |||
|---|---|---|---|---|
| From | 1 | шт | 9310 | грн |
| From | 2 | шт | 9124 | грн |
Переглянути відгуки (2)
Pixhawk PX4 2.4.8 Flight Controller 32 Bit ARM M8N GPS Combo for multicopters
The board is integrated with PX4FMU+PX4IO. Pixhawk has a new 32-bit chip and sensor technology
32-bit 2MB STM32F427 Cortex M4 flash memory, with hardware floating point processor
Main frequency: 256 KB, 168 MHz RAM
32-bit redundant STM32F103 coprocessor
L3GD20 3-axis digital 16-bit gyroscope
LSM303D 3-axis 14-bit accelerometer/magnetometer
MPU6000 6-axis accelerometer/magnetometer
MS5611, high-precision barometer
Interface:
5*UART, 1*compatible high voltage, 2*hardware flow control
2*CAN
Spektrum DSM/DSM2/DSM-X compatible satellite receiver input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI INPUT
3.3 and 6.6VADC input
External USB MICRO interface
Advanced 32-bit high-performance CortexM4 ARM processor, can run with NuttX real-time operating system RTOS;
Integrated redundant power supply and redundant failover controller, the main controller can be safely switched to redundant control;
Provide redundant input power and fault transfer function;
14* PWM drive output;
Bus interface (UART, I2C, SPI, CAN);
Provide automatic and manual mode;
color LED lamp;
Multi-tone buzzer interface;
Micro SD for recording flight data;
