Hobbywing XRotor Micro Combo - F4 G2 FC - 45A 4-in-1 ESC Polo Controller

Specifications

Micro Flight Controller F4 G2

Item name: F4 G2 flight controller

Firmware: OMNIBUSF4SD

FC programming: Supported

Programming via: Betaflight/Cleanflight-configurator or other

Compatible with (modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000, etc.

Compatible with (transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, etc.

OSD menu: built-in

Voltage monitoring: supported

Current monitoring: supported

External buzzer: supported

LED control: supported

BEC: No

USB port: MicroUSB

Size: 36*36 mm

Weight: 6g

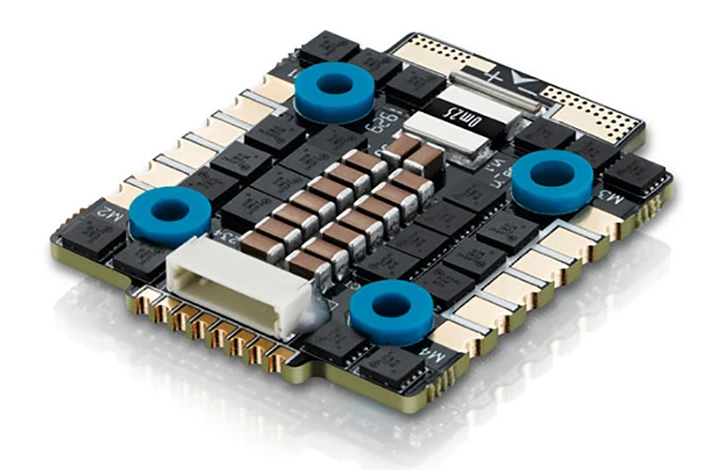

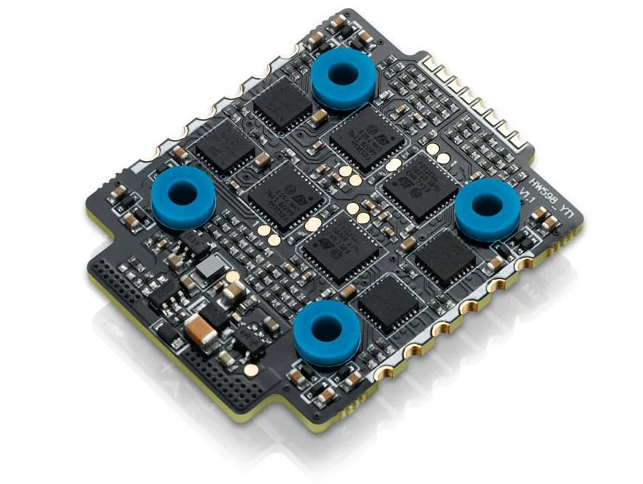

Micro 45A 4-in-1 ESC

LiPo Power: 3S-6S

Constant current: 45Ax4

Blast current: 60Ax4

BEC output: 5V @ 1.5A / 10V @ 1.5A

Input wires: 12AWG-130 mm* (red/black)

Output wire: without wires, but for soldering

Connectors: (input/output) XT60 (with soldered wires) / no

Weight / Size: 11.5 g / 32.7x18.4x6.2 mm

Mounting holes: 30.5x30.5 mm

Throttle calibration: supported

ESC programming: BLHeliSuite32

DEO: Supported

OneShot mode: supported

Time: Supported

Motor rotation: supported

Includes

1x F4 G2 FC

1x 45A 4-in-1 ESC

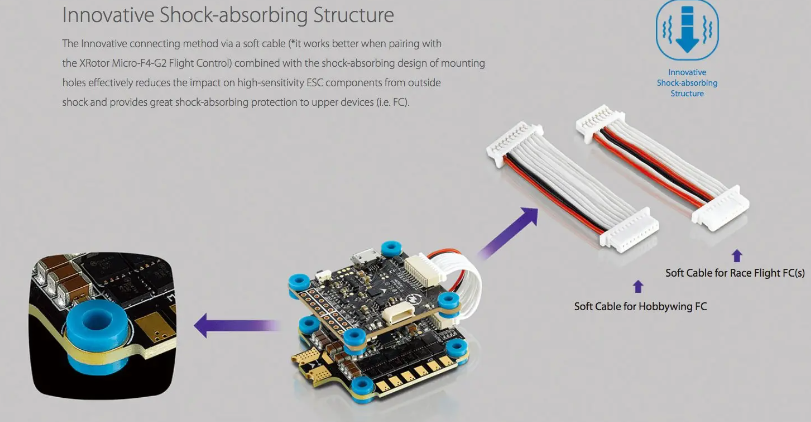

1x signal cable

Soft bushings for mounting

About this product.

This is the Flight Controller and ESC stack of choice for many of the top FPV pilots in the world, including Minchan Kim, Milk FPV, Gapit FPV, Banni UK; just to name a few. And it's no wonder it was designed for intense competition. This package consists of premium components that won't let you down on race day.

This stack contains the best features for today's racers, such as DShot1200, BLHeli32, built-in SD slot, STM32405, ICM20602, and built-in filter circuitry for your VTX.

The built-in OSD on the FC allows the user to adjust or set OSD parameters from your flight firmware, such as Betaflight/Cleanflight/Butterflight, etc.
