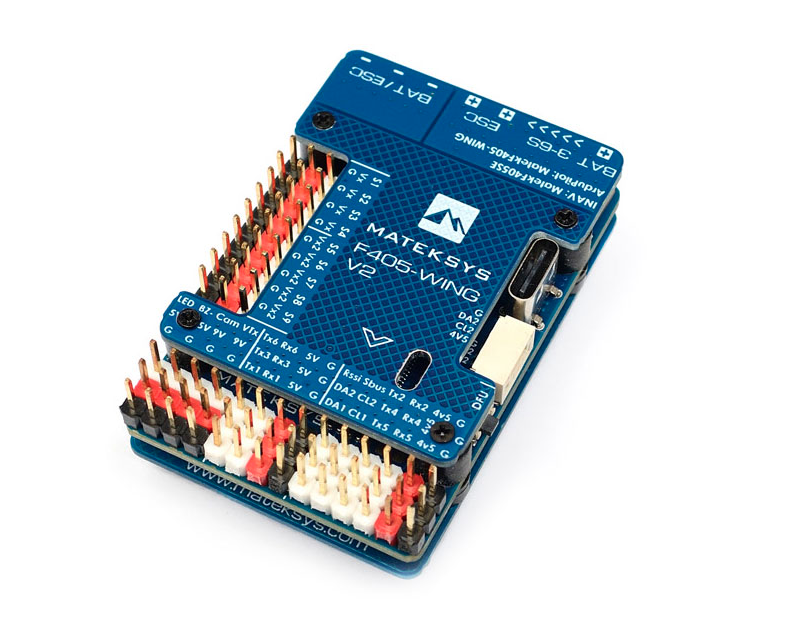

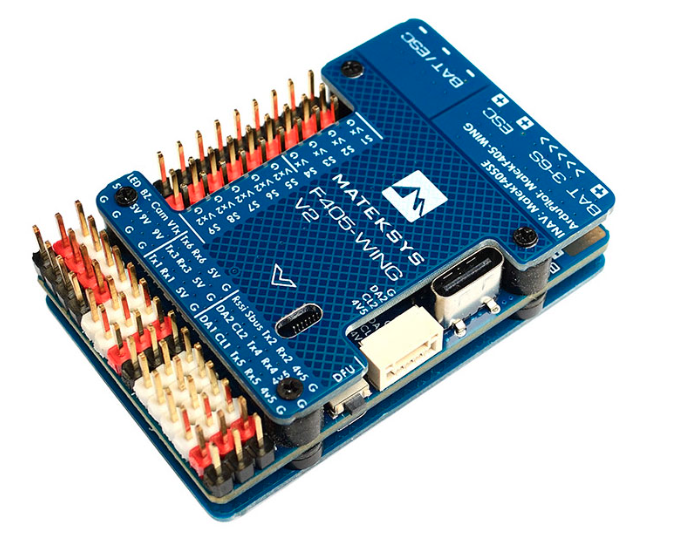

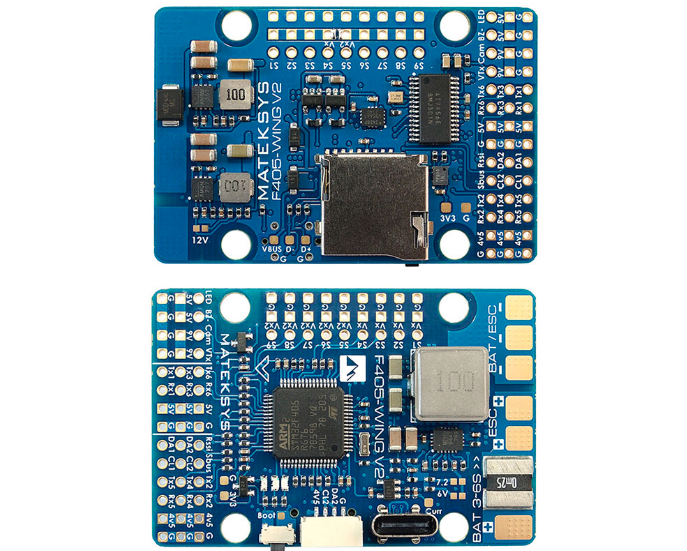

Matek F405-WING V2 Flight Controller
FC Specifications:
MCU: STM32F405RGT6, 168 MHz, 1 MB Flash
IMU: ICM42688-P
Baro: DPS310
OSD: AT7456E
Blackbox: MicroSD card slot
6x UARTs, 1x Softserial_Tx option (INAV)
10 PWM outputs
2x I2C
3x ADC (VBAT, Current, RSSI)
Built-in inverter for SBUS input
USB Type-C (USB2.0)
FC Firmware
ArduPilot: MatekF405-Wing (ArduPlane 4.4 or later)
INAV: MATEKF405SE (INAV 6.0 or later)
PDB
Input voltage range: 9~30V (3~6S LiPo) with TVS protection
Current sensor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7 A/V)
Sense resistor: 100A continuous, 220A peak
Battery voltage divider 1K: 10K (INAV scale 1100, BATT_VOLT_MULT 11.0 in ArduPilot)
BEC output 5V
Designed for flight controller, Receiver, OSD, camera, buzzer, 2812 LED strip, buzzer, GPS module, AirSpeed
DC Current: 2 A
BEC Output 9V/12V
Designed for video transmitter, camera, gimbal, etc.
DC Current: 2 A
12 V Option with Jumper
For a stable 9 V/12 V output, the input voltage must be higher than the output voltage +1 V
BEC Vx Output
Designed for servos
Adjustable voltage, 5 V by default, 6 V or 7.2 V options
DC Current: 5 A, 6 A Peak
For a stable Vx output, the input voltage must be > Vx voltage +1 V
BEC 3.3 V Output
Designed for external 3.3 V peripherals
Linear regulator
DC Current: 200 mA
Specifications:
Mounting: 30.5 x 30.5 mm, Φ4 mm with Φ3 mm bushings

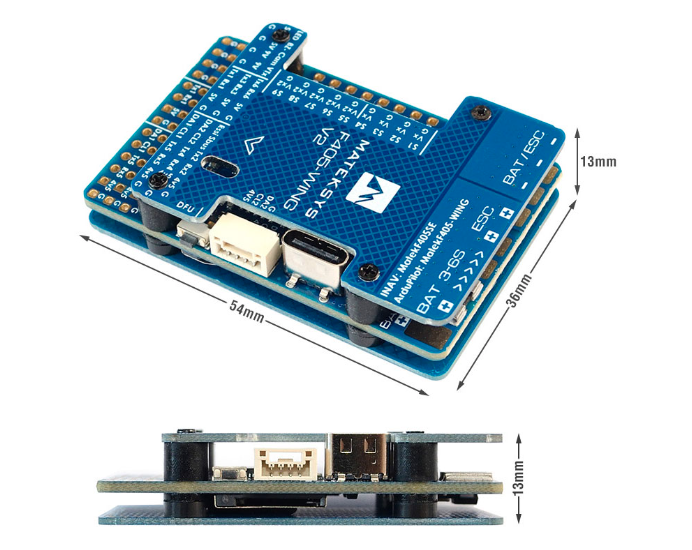

Dimensions: 54 x 36 x 13 mm
Weight: 25g
Package Contents:
F405-Wing-V2 PCB
20 cm JST-GH-4P to JST-GH-4P cable for I2C port
Dupont 2.54 pins (board comes pre-soldered)
