Frame for Mark4 7 Frame FPV quadcopter

Frame for Mark4 7 Frame FPV quadcopter

  • CHARACTERISTICS
  • Frame size along motor axes: 295mm
  • Beam thickness: 5mm
  • Side plates: 2.5 mm
  • Top plate: 2.5 mm
  • Bottom plate: 2.5 mm
  • Frame type: H-frame
  • Size: 223mm x 193mm x 30mm
  • Count Price
    From1шт1764грн
    From2шт1729грн
    From6шт1694грн
    From16шт1676грн
    From42шт1659грн
    Code: 1808
    шт.
    Є в наявності

    Переглянути відгуки (0)

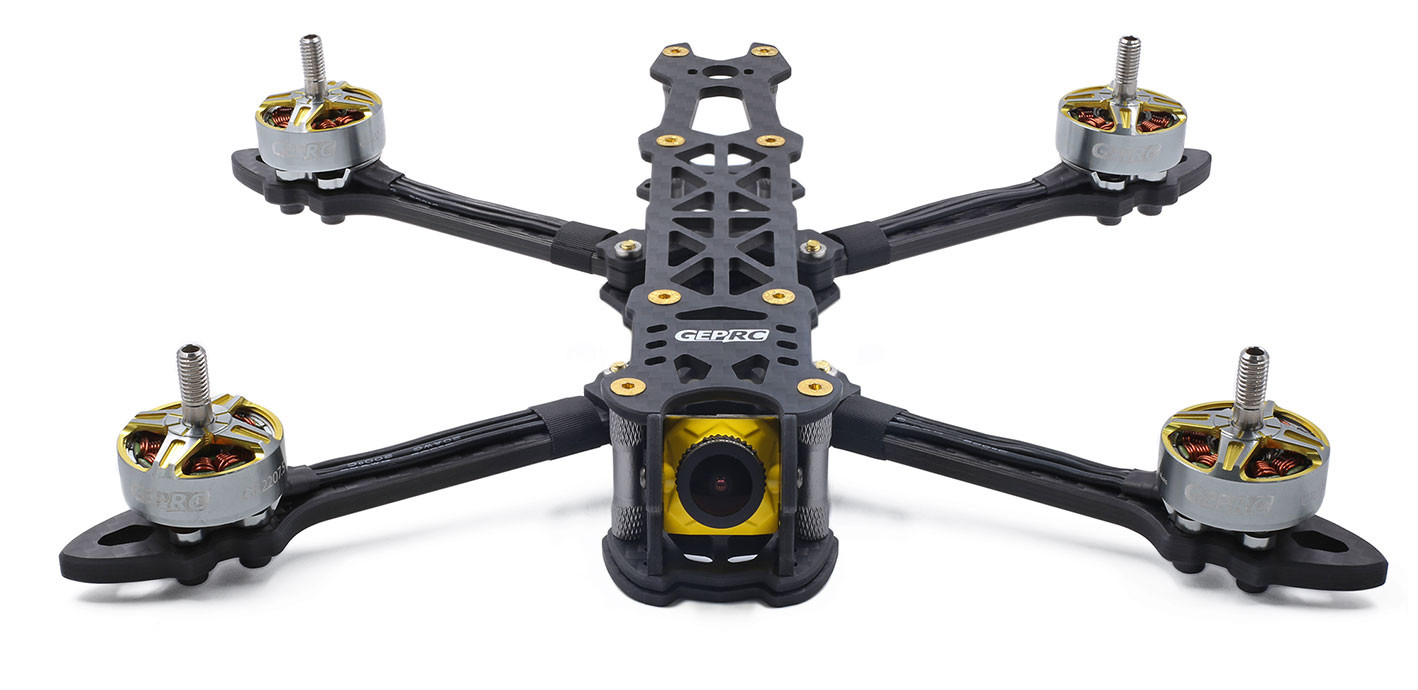

    >Frame for Mark4 7 Frame FPV Quadcopter
  • DESCRIPTION

    With continuous improvements in construction, design and fitment, GEPRC has released the 4th version of the popular GEP-Mark frame.

    The GEP-Mark4-7 is a super lightweight frame for 7" propellers, designed for long range freestyle FPV flights. In addition to weight, the frame has several advantages such as variable mounting of electronic components, a more balanced center of gravity, quality carbon fiber machining, unique design using flat bolts and brushed titanium colored struts.

    The cleverly designed H factor shape means that the frame beams are shorter in length and more spread out horizontally so that when shooting, the propellers are less likely to be in the frame.

  • FEATURES.

    Super lightweight frame for freestyle long distance flying

    High quality 3K carbon fiber, high precision machining

    Beautiful design and high durability

    Interchangeable 5mm beams

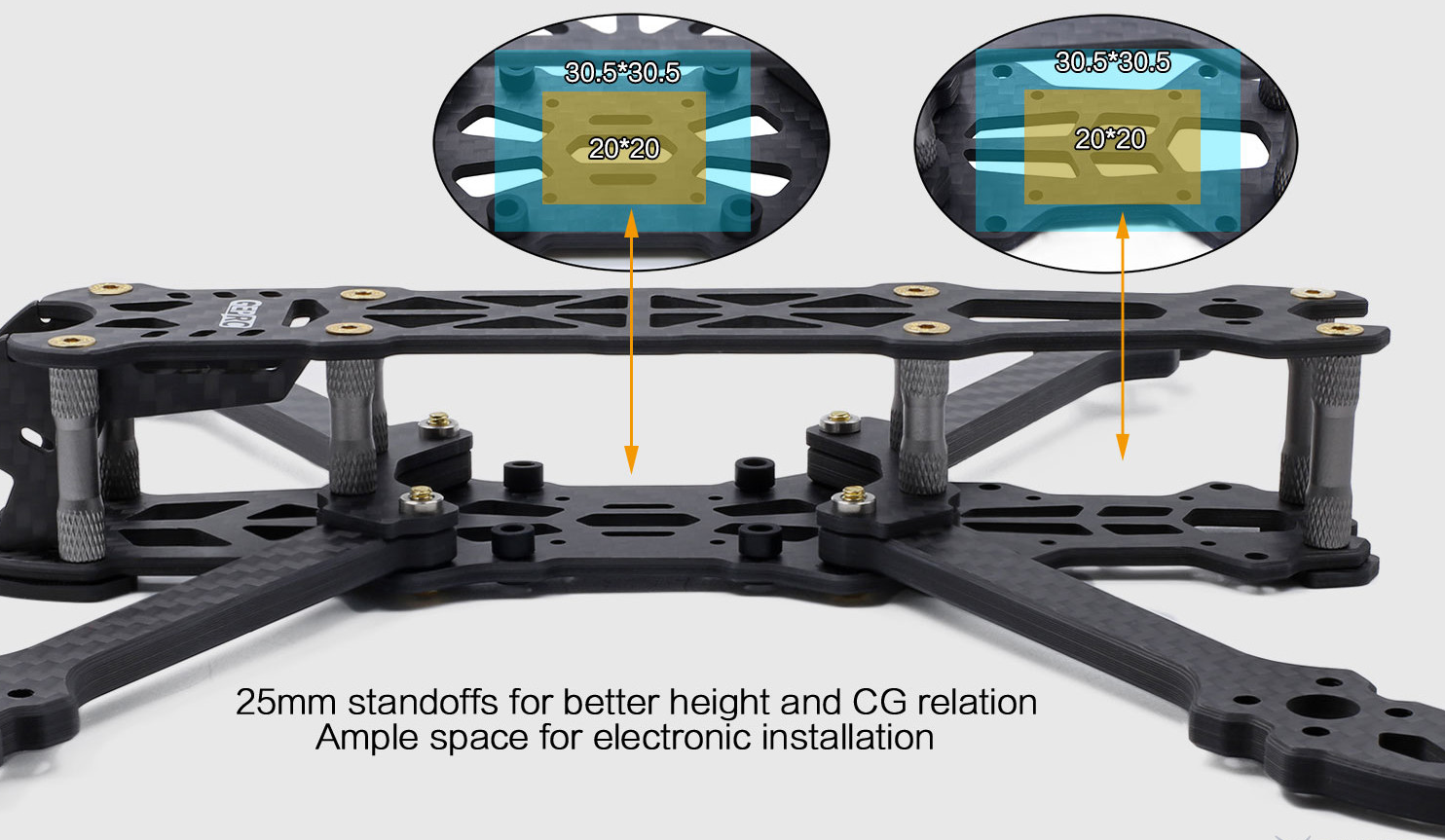

    25mm 6061 aluminum struts for better height and CG ratio

    Mounting holes 30 x 30 and 20 x 20, stack can be mounted in the center or back of the frame

    YFS 12.9 strength grade bolts, non-slip teeth, corrosion resistant

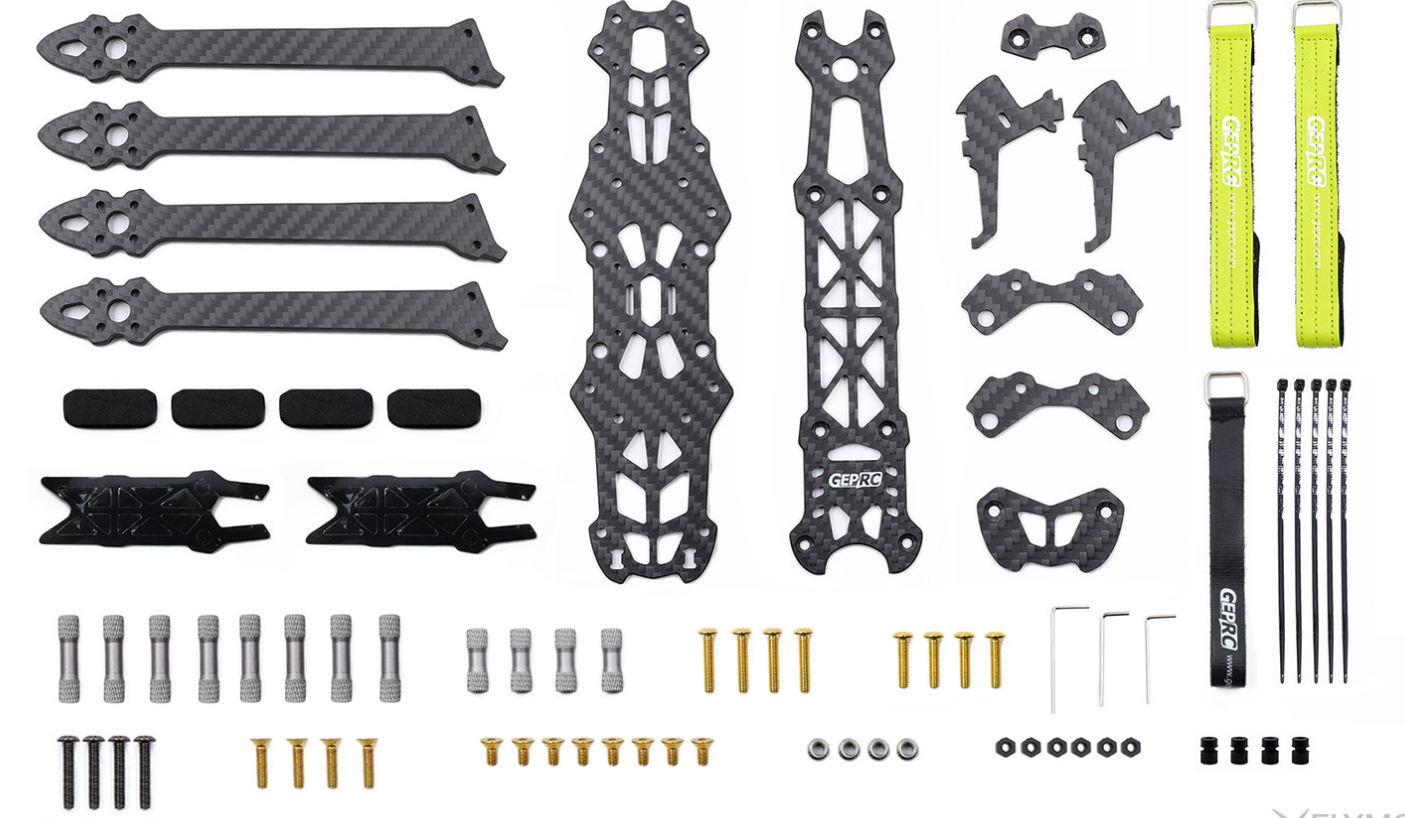

    Frame for Mark4 73 Frame for Mark4 72 Frame for Mark4 71
